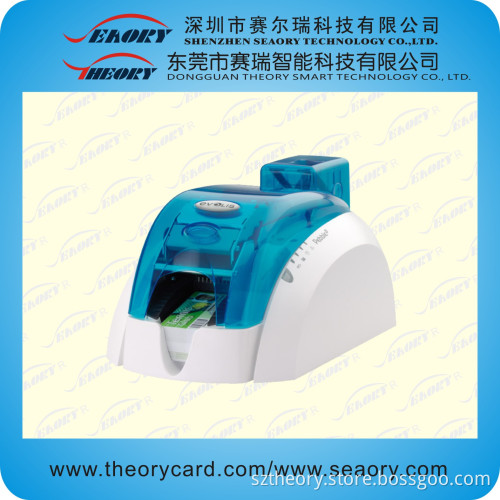

Evolis Pebble 4 Thermal PVC Card Printer Machine

Products Status: StockType: Dye sublimation printerStyle: Color
Use: Card PrinterInterface Type: USBMax Paper Size: CR80
Black Print Speed: 1000cards/hourColor Print Speed: 150cards/hourMax. Resolution: 300dpi
Brand Name: EvolisModel Number: Pebble 4Place of Origin: France
Card Types: :
All PVC, Composite PVC cards, PET, ABS1 and special varnished 1 cards
Card Format: : ISO CR-80 - ISO 7810 ISO CR-79Card Thickness: :
From 0.25 mm (10 mil) to 1 mm (40 mil)
Printer size: : 192mm*447mm *237mm ( H*L*W )Card feeder capacity: :
100 cards (0.76 mm - 30 mil), 300 cards (0.25 mm - 10 mil)
Output hopper capacity: :
50 cards (0.76 mm - 30 mil), 150 cards (0.25 mm - 10 mil)
Printer weight: : 5, 9 Kg (13 Lbs)Connections: :
USB (cable supplied) - Option for Ethernet TCP-IP
Electrical: :
Power supply: 100-240 Volts AC, 1.8 A, 50-60 Hertz,
Module: : Color Printing
Packaging & Delivery
Packaging Detail: Weight: 5.9 Kg (13 Lbs) Size: H192 mm (7.55'') / L396 mm (15.59'') / W235 mm (9.25'')
Delivery Detail: 3 days upon receipt payment

Specifications
-Color printing module
-300 dpi print head (11.8 dots/mm)
-USB connection
-Option for Ethernet TCP-IP connection
Evolis Pebble 4 Card printer

General printer specifications
Color printing module
300 dpi print head (11.8 dots/mm)
USB and Ethernet TCP-IP connections
16 MB RAM
Detachable feeder with a capacity of 100 cards (0.76 mm - 30 mil)
Output hopper with a capacity of 50 cards (0.76 mm - 30 mil)
1-Button and 4-LED control panel
Printer colors: Ocean blue, Fire red
Print modes
Color dye sublimation and monochrome thermal transfer
Enhanced color management system for top quality pictures
Edge-to-edge printing
Integrated ribbon saver for monochrome printing
Printing speed

Personalization throughput will depend on card design and printer settings
Color (YMCKO): 150 cards/hour
Monochrome: Up to 1000 cards/hour 1
Supported platforms
Windows™ 7 (32 & 64 bits), XP and Vista (32 & 64 bits)
Windows 2003 Server and Windows 2000 drivers available upon request - depending on system configuration
Mac™ OS X V10.2, 10.3, 10.4, 10.5, 10.6
Linux
Software supplied
EMedia Card Designer Software for designing and editing badges
Compatible with Windows™ 7, XP, 2003 and Vista
Connection to Microsoft™ Excel databases
Warranty

Use Evolis Genuine products for best performance and extended lifespan of your printer

Printer, print head: 3-year warranty, unlimited number of passes 2
Other specifications
Card Types
All PVC, Composite PVC cards, PET, ABS1 and special varnished 1 cards
Card Format
ISO CR-80 - ISO 7810 (53.98 mm X 85.60 mm - 3.375" X 2.125")
ISO CR-79 (52, 10 mm X 83, 90 mm - 3.303" X 2.051") option
Card Thickness
From 0.25 mm (10 mil) to 1 mm (40 mil)
Output hopper capacity
50 cards (0.76 mm - 30 mil),
150 cards (0.25 mm - 10 mil)
Card feeder capacity
100 cards (0.76 mm - 30 mil),
300 cards (0.25 mm - 10 mil)
Printer size
Height: 192mm (9.25")
Length: 447mm (17.59")
Width: 237mm (9.33")
Printer weight
5, 9 Kg (13 Lbs)
Connections
USB (cable supplied) - Option for Ethernet TCP-IP
Electrical
Power supply: 100-240 Volts AC, 1.8 A, 50-60 Hertz,
Printer: 24 Volts DC, 3 A
Environmental
Min/max operating temperature: 15° / 30° C (59° / 86° F)
Humidity: 20% to 65% non-condensing
Min/max storage temperature: -5° / +70° C (23° / 158° F)
Storage humidity: 20% to 70% non-condensing
Operating ventilation: Free air
1 - Under specific conditions
2 - Subject to observance of specific conditions and use of Evolis genuine consumables.
