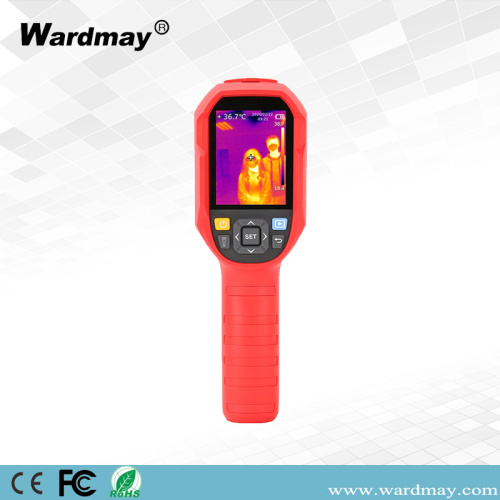

Infrared Thermal Image Body Temperature Measurement Use with PC from Wardmay CCTV
- Payment Type:
- T/T, Western Union
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 5000 |
| Supply Ability: | 20000pc/month |
| Payment Type: | T/T,Western Union |
| Certificate: | CE, FCC, |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Features
*2.8" TFT Screen
* Infrared resolution: 160*120
*Range of temperature measurement: 30ºC~45ºC
*Accuracy: ±0.5ºC (1m)
*Photographed function and SD Card storage
*PC Software analysis
*Real-time image transmission
*Type-C USB Interface for lithium battery charging
*1/4" tripod mounting hole
*High-temperature limit exceeding alarm
The customized high temperature limit can be set to 37.3ºC. For the temperature ≥37.3ºC, indicator light and screen will indicate high temperature alarm, which can effectively and quickly screen individuals with abnormal temperature.
*Real-time image transmission
Set the USB mode to USB camera, connect the USB cable to the computer to mirror the upper computer software by real-time image transmission.
Fearures: Real-time image transmission, mirror the computer on larger screen for monitoring.
Specifications
| Specifications | |
| Product Name | Infrared Imager Use With PC |
| Model No. | WDM-TI201K |
| Video | |
| Sensor | Uncooled focal plane |
| Temperature range | 30˚C~45˚C |
| Resolution | 0.1˚C |
| Accuracy | ±0.5˚C @1m |
| Minimum measuring distance | 15cm |
| Temperature measurement response time | ≤500ms (95% of reading) |
| Pixel of thermal imagery | 19200 (160×120) |
| Pixel dimemsions | 12μm |
| Palettes | Iron red, rainbow, white, black, red, lava, high-contrast rainbow |
| Bandwidth of infraed spectroscopy | 8~14μm |
| Field of view (FOV) | 56°(H) × 42°(V) |
| Instantaneous field of view (IFOV) | 6mrad |
| Thermal imaging sensitivity | <50mk |
| Frame rate | <9Hz |
| Temperature display | Center temperature measurement and high temperature tracking (default) |
| Image format | BMP |
| Buttons | 10 buttons: POWER button, Camera button, Return button, Navigation buttons, SET button, SET button, Browsing button, LED lighting button |
| Pixel dimemsions | 12μm |
| Palettes | Iron red, rainbow, white, black, red, lava, high-contrast rainbow |
| Image modes | Thermal imagery, digital camera (visible light), fushion |
| Temperature measuring point | Besides central point, 3 temperature measuring points can be added |
| Visible light | √ |
| Resolution of visible light | 640×480 |
| Display resolution | 320×240 |
| Mixed setting | 0% (total visible light), 25%, 50%, 75%, 100% (total thermal imagery) |
| PC analysis software (PC) | √ |
| Real-time image transmission | √ (PC software image projection) |
| Data communication | Type-C USB |
| Auto power off | Selectable (5min, 10min, 30min), 30min auto power off (default) |
| Service time | >=6 hours |
| Charging time | <=5 hours |
| Charging voltage/current | 5V/2A |
| Image storage | Micro SD card |
| General Characteristics | |
| Power | A single Li-ion 3.7V/5000mAh 26650 battery |
| Display | 2.8" TFT LCD |
| Product color | Red & grey |
| Product size | 236mm x 75.5mm x 86mm |
| Standard accessories | Manual, Type-C USB cable, 16GB TF card |
| Standard carton gross weight | 2.2KG |
Product Show:
