316 Stainless Steel 1080P 36X Explosion-proof IP Camera

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 5 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	20000 per/month
Supply Ability:	20000 per/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, FCC, RoHS
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

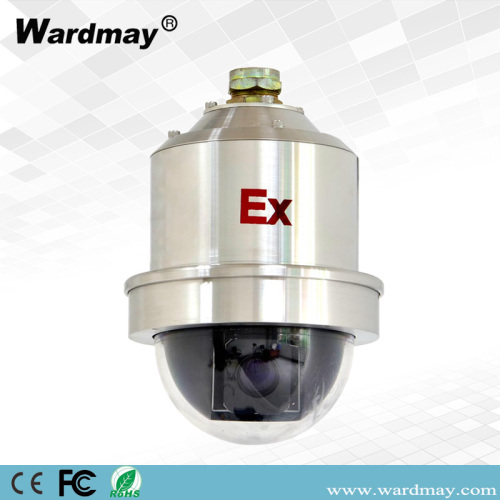

IP Explosion-Proof Camera:Wardmay continues to be the innovator for low cost Stainless Steel IP Camera by manufacturing a series of Explosion-Proof, Nitrogen Pressurized models. The Ip Explosion-proof Camera is a High Resolution (1080P) Sony-based camera housed inside a machined 316 Stainless Steel Pressure Vessel. The Explosion Proof Ip Camera has 5pcs white light that can be out to a distance of 80-100m. Both Models a 4.6mm -167mm/F1.6~F4.8 36X Zoom lens that can be zoomed to any point within that distance. IP Explosion-Proof Camera allows the user to adjust the view to whatever is needed for the site.More informtion of the Security Camera ,check it below,thanks.

Features

* 2.0M Pixel 1/2.8" Sony CMOS Sensor

* H.265 Main Profile / H.264 Main profile / M-JPEG
* Night vision distance 80-100m
* IP68 Waterproof
* Support Hikvision, CMOS, TSN, UC2, main NVR ONVIF
* Stainless steel with surface electpolish and passivation treatment, explosion-proof, dust-proof, water-proof, rust-proof
* Used polycarbonate composite aerospace materials, hard, anti-fog treatment, has good hardness and corroson resistance
* Automatic display: control protocols, baud rate, address functions managing title information, PTZ
* 24 Hours time display, the real time temperature display, the real time humidity display
* Preset time can be set from 1-120 seconds, vertical scan rate 1-300 angel/second, 64 stages adjustable
* Video play back function, 254 preset, The preset position accuracy is 0.1 degrees, 4 route 16 preset, Limiting automatic scanning function

Specifications

Specification
Model No.	WDM-EX200IPS36X
Certificate of Conformity
Marking	Ex d IIC T6 Gb/EX tD A21 IP68 T80℃
Housing Material
explosion-proof housing	316 stainless steel
Surface Treatment	Original Stainless Steel Color, Electropolishing Optional
Ingress Protection	IP68
Interface Spec	G-1/2"
Method of Installation	Wall Mounting & Lifting
Video
Sensor	2.0M Pixel 1/2.8" Sony CMOS Sensor
Output resolution	1920(H)×1080(V)
D/N Mode	Color, Color video anytime in low light conditions
Illumination	0.1Lux(color), 0.01Lux( Black & White)
WDR ranger	≥80dB
S/N Ratio	≥50dB(AGC OFF)
DNR	Support DNR, 3DNR
Gain control	Auto/Manual
Exposure mode	Program mode, shutter mode (custom shutter interval, grab license plate), manual
Electronic shutter	1/2 - 1/20,000s, support for slow shutter
Privacy protection	Support 3D privacy area ON/OFF (4 privacy areas can be set on the same screen)
D/N Mode	Auto IRC filter color conversion, fixed black and white, fixed color, external control
Lens
Focus length	4.6mm -167mm/F1.6~F4.8
Optical focus	36X
Night Distance	80-100m(5pcs White Light )
Pan Tilt
Viewing angle	61.2 °(proximal) / 2.32 °(distal)
Presets	254
Auto Mode	Support for 4 Auto cruises, 4 Auto line sweeps
3D positioning	Support click in center, box selection zoom in
Compression standard
Video processing	H.265 Main Profile / H.264 Main profile / M-JPEG
	CBR/VBR, 32Kbps~10Mbps
Audio processing	G711, PCM
Max Resolution	1920x1080@30fps
Video Resolutiont	Main streaming: 1920x1080.1280x960.1280×720.720×576.640×480; Sub streaming: 640×480.480X360.352×288.320×240.176×144; MJPEG: 1920x1080.1280x720, close

Network Parameter
Visits	Main stream 3 users, Sub stream 6 users
Network interface	TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P
Access Protocol	Standard ONVIF Protocol, Support third party access; PC;
	Support IE6.0 and aboveSmartphone
	Support Android\iPhone
Compatibility	Support Hikvision, CMOS, TSN, UC2; Support main NVR ONVIF
Interface
Analog output	1.0Vpp/75Ω, NTSC/PAL, BNC
Network interface	1*10/100BaseT Ethernet, RJ45
Alarm In/Out	1/1
Audio In/Out	1/1
Normal
Rated Temperature	(-30℃ - +70℃)
Atmospheric Pressure	80-106KPa
Relative Humidity	≤95%RH(+25℃)
Power supply	DC12V/AC24V

Product Show

Explosion Proof Ptz Camera
