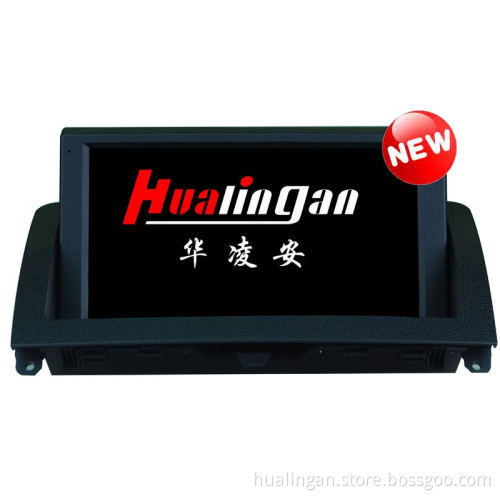

C-W204 Radio Navigation With Pip With Tmc for Mercedes-Benz (HL-8810GB)

Mercedes-Benz C W204 (2007-2011)

Accessory: 7 screen+main unit

(1), Product features:

1, We adopt the latest ARM11 to develop high performance multimedia car DVD with the functions of navigation, audio&video, entertainment and etc.
2, It has more video decoding capabilities, maximum support 1024*768, with MP5.
3, RAM 256, Support hard disk 500G and HD map.
4, Support SANYO 6 disc DVD changer (optional)
5, GPS navigation function: SiRF Prima, CPU: ARM11, 800MHz, WinCE 6.0

(2), Parameters:
1, DVD player adopt the MTK1389L decoding chip.
2, Support the Bluetooth function, Phone book, A2DP
3, Built-in TDA7703 FM/AM radio module.
4, Bluetooth phone and A2DP function.
5, Built-in 4 X 40W amplifier output. (TDA7388)
6, Two SD slot: GPS navigation map card, multimedia card.
7, Support USB 2.0 high speed OTG, USB1.1 HOST; Support the USB SATA hard disk.
8, Support two AV IN (one is front AUX audio and video input, one is rear AUX audio and video input).
9, Two video out output.
10, 4.1CH 2Vrms audio output.
11, Support iPod input (audio).
12, Camera input.
13, Digital television function: CMMB; DVB-T; ATSC; ISDB (optional)
14, RDS function (optional)
15, Support photo browser
16, Support MP5 Multimedia HD video play
17, E-book function
18, Support reversing auxiliary function of original car
19, Support External TV function
20, Support all standard analogy TV

(3), Key parameters:
1, Operating voltage range: DC10.5V~ 16V; Maximum operating current: 10A
2, Operating temperature: -20~60
Storage temperature: -30~70
3, Standby current: ≤ 50mA
After power off in 10 minutes: <1mA
4, Shutdown current: <1mA
