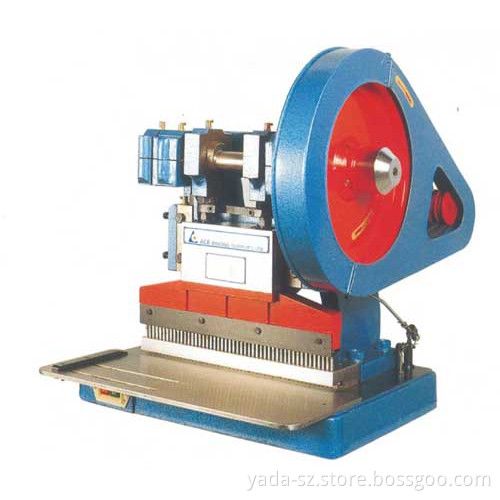

Multifunction Puncher (YD-800P)

Multifunction Puncher(YD-800P)

The puncher is an inexpensive semi-automic punching machine with interchangeable tools for binding with a wide variety of materials of almost any shape and sizes. It is robust and reliable, and offers high performance and flexibility for intensive commercial loose leaf binding purposes

* Punching Width: 63cm(75 pins for 3: 1" punching tool)
* Punching Capacity: 3mm (About 30 sheets of 80 gsm paper)
* Operation: By footswitch control
* Operation Speed: 280 strokes / minute
* Voltage Requirement: Single phase 220V (three phase 380V available)
* Work Table Size: 69 x 30 cm
* Machine Dimension: 86 x 78 x 138 cm
* Shipping Dimension: 90 x 86 x 152 cm
* Shipping Weight: 270 kgs
* Installation: Electrically operated, no air required
* Tooling Available: The puncher is compatible with the following punching tools:
-2: 1" square hole (for double wire)
-3: 1" square hole (for double wire)
-9/16 rectangular hole (for Plastic comb)
-6mm round hole (for spiral)
-Thumbcut punching die( for calendar hanger)
