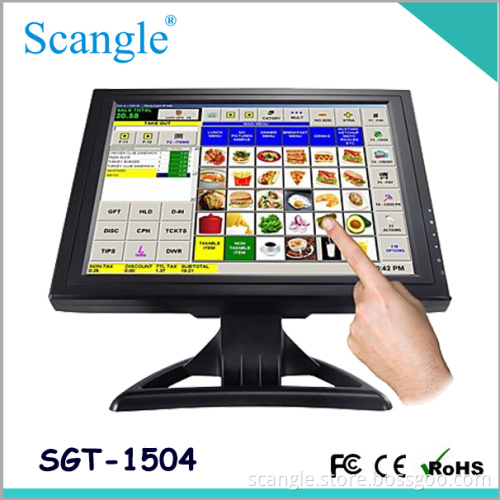

15inch Touch Screen Monitor (SGT-1504)

Get Latest Price

Payment Type:: L/C, T/T, Western Union, Paypal, Money Gram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T, Western Union, Paypal, Money Gram

Product Description

Description:
LCD
Model No: SGT-1504
. Size of LCD Panel: 15"LCD
. Pixel pitch: 0.297× 0.297mm
. Max Resolution: 1024X768@75Hz
. Contrast Ratio: 450: 1
. Brightness: 250CD/m2
. Viewing Angle: H: 150° V: 120°
. Response Time: 4/12ms
. Band width: 135MHz
. Starting interface: VESA Standard
. Displaying Color: 16.7M
. Input Voltage: AC 100-240V 50/60Hz
. Power Consumption: . Life: 50, 000Hours
. Input port: VGA
. Dimension: 364*53*304mm
. Package Dimension: 430× 190× 410mm
. N. W/G. W: 4.5kg/7.0kg
. Container Quantity: 970 PCS (20FT) 2011 PCS (40FT)
. Certification: FCC, CE, FCC, CE, UL, TCO99, CB, SASO, FDA

5 Wire Resistive Touch Screen Panel
Specification:
. Surface Hardness: 3H
. Optical Clarity: 80 %
. Operating Temperature: -10° C ~ 60° C
. Endurance Test strikes: Over 1 million
. Operating Voltage: DC5V
. Resistance: 200 ~ 900
. Linearity: . Faceplate Surface: Anti-glare coating
. Operation Pressure: 80 ~ 120g
. Storage Temperature: -20° C ~ 70° C
Message Noise: 5 m sec ~ 15 m sec
Operating Current: 5mA ~ 25mA
Isolation Resistance: 20M@DC25V
