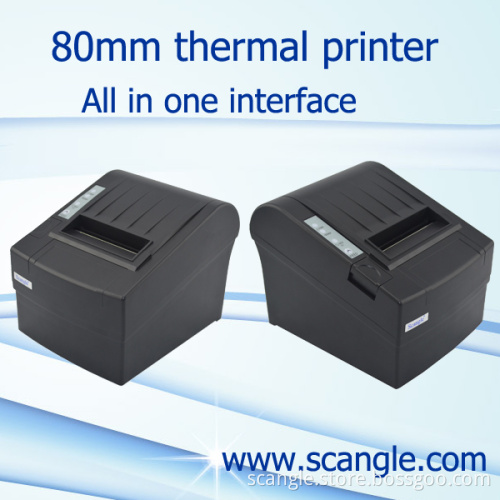

80mm All in One Interface Thermal Printer (SGT-8220)

Scangle POS Thermal Printer:
1, 80mm thermal Receipt printer ( with auto-cutter) (USB/LAN/Serial/Parallel / WiFi port)
2, Thermal POS printer Scangle SGT-8220 with CCC, FCC, CE. EMC certificate
3, Printing speed: 230mm/sec. with unique design, use friendly.
4, It can with WiFi interface.

5, All in one interface: USB+RS232+Ethernet ( RJ45),  WiFi Port.

General

Scangle SGT-8220 is one latest model of 80MM POS thermal printer, it can support multi interface, so it is much easy to connect with different interface to work for one machine.

Character size576spot/lines
512spot/lines
ANK character,
Font A:12*24dot ,1.5(w)*3.0(h)mm
Font B:9*17dot,1.1(w)*2.1(h)mm
Jan/traditional form:24*24dot,3.0(w)*3.0(h)mm

Barcode typeUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)
CODABAR/ITF/CODE39/CODE93/CODE128

Printing speed250mm/sec

Interface typeParallel/serial port/wireless /USB

Print commandCompatible ESC/POS order
The printing paper is wide: 79.5±0.5mm (print wide 72mm)

Printing paper outer diameter83 mm

POS Printer

The printing paper is thick0.06-0.08millimeter

PowerDC 24V/2.5A

Cash box controlDC 12-24V/1A

Automatic cutterAll cuts or partly cuts (may elect)

Reliability100KM

Weight1.60kg

Temperature0-45

Relative humidity10-80%

DriverWin9X/WinME/Win2000/WinXP/WinNT Compatible: ESPON,SAMSUNG

Outward appearance size186*145*140mm
