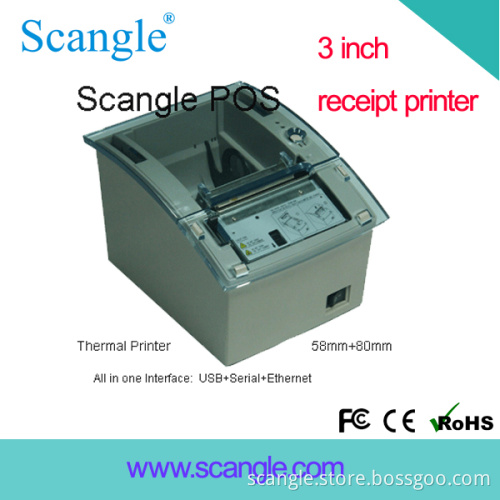

80mm and 58mm Thermal Receipt POS Printer

SGT-803 thermal printer can print 58mm, 76mm, 80mm. All in one printer

Model: SGT-803
Command protocal is based on ESC/POS standard
Waterproof, oil-proof design
Low-noise thermal printing.
Various Layouts are possible by using page mode
Characters can be scaled up to 64 times as large as standard size.
Repeated operation and copy printing are possible.
Character font size(12*24/9*17/24*24 font)optional.
Easy paper-roll installation.
Easy paper jam clearance.
Support Linux and OPOS driver
Easy maintenance for tasks such as head cleaning.
Built-in interface provides control capability for cash drawer.

Specification:
Support NV images Download
Print method: Thermal line printing
Print speed: 220 mm/ sec.
Paper width: 58mm/ 76mm/80mm
Print columns: 576dots/line
DOT density: 203dpi(8dots/mm)
Print character: ANK Character
Font A: 12*24 dots
Font B: 9*17 dots
Simplify/Traditional/Japanese/Korean: 24*24dots
Language: English/French/German/Denish/
Spanish/Japanese/Korean...
Interface: Parallel/RS232C+USB/Ethernet
Cutter: Full or partial cut
Reliability print: 100Km
Power supply: DC 24V
Cash Drawer: DC 12-24V/1A
Kitchen''s print: Support
Temperature: 0~50 degress
Paper thickness: 0.06~0.08mm
Dampness: 10~80%
Barcode mode: UPC-A/UC-E/JAN13(EAN13)/JAN8(EAN8
/CODE39/ITF/CODABAR/CODE93/CODE128
Drivers: Win9X/WinME/ Win2000/WinNT/ WinXP, /win 7,
Compatible with Epson, Samsung
Print command: Compatible with ESC/POS
External dimension: 195mm × 145mm × 135mm
