POS Kitchen Thermal Printer (SGT-802) with All in One Interface / WiFi Available

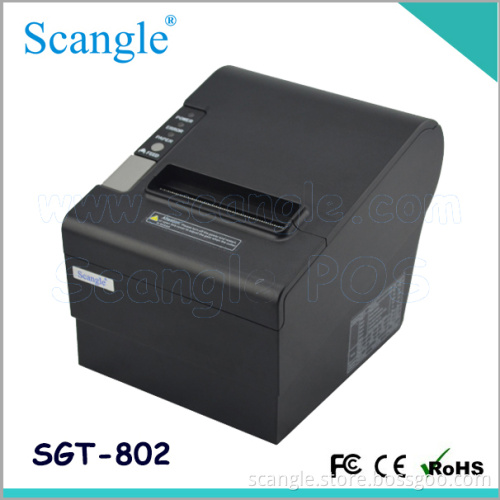

Scangle  SGT-802   POS thermal kitchen  receipt printer


POS receipt printer Features :

1, 80mm POS thermal receipt printer ( with auto-cutter) (USB+LAN+Serial/Parallel / WiFi port)
2, Thermal POS Printer Scangle SGT-802 with CCC, FCC, CE. EMC certificate
3, Printing speed: 250mm/sec. With unique design, use friendly.
4, It can with WiFi interface.

Specifications :
Print	Printing Method	Thermal Line
	Printing Speed	250mm/s
	Resolution	8 dots/mm, 576 dots/line
	Effective Printing Width	72mm
Character	Character Set	ANK,GB18030(Chinese)
	Print Font	ANK: 12 x24 Chinese: 24 x 24
	Character per Line	42
Paper Spec	Paper Type	Thermal paper
	Paper Width	79.5± 0.5mm
	Paper Roll Diameter	Max: 80.0mm
	Roll Core Inner Diameter	13mm(min.)
	Paper Thickness	0.06 to 0.07mm
Paper Supply Method	Drop-in paper load
Reliability	MCBF	60 million lines
	Auto Cutter	500,000 cuts
	TPH	100km
Barcodes	UPC-A,UPC-C,EAN-13,EAN-8,CODE39,ITF,CODEBAR,CODE93,CODE128
Emulation	ESC/POS
Print command	Compatible ESC/POS order
Driver	Windows2000/XP/7/VISTA,Compatible: ESPON,SAMSUNG
Sensor	Paper Near End Sensor, Paper End Sensor
Drawer Port	1 Port
Interface	RS-232, Parallel, USB, Ethernet
Power Supply (Adapter)	AC100 ~240V(± 10%) DC 24V, 2A
Auto cutter	Type	Guillotine ( full autocutter )
	Life	1,000,000 cuts
Automatic cutter	All cuts or partly cuts (may elect)
Character size	576spot/lines 512spot/lines ANK character, Font A:12*24dot ,1.5(w)*3.0(h)mm Font B:9*17dot,1.1(w)*2.1(h)mm Jan/traditional form:24*24dot,3.0(w)*3.0(h)mm
Power	DC 24V/2.5A
Cash box control	DC 12-24V/1A
Physical	Net / Gross Weight	1.6kg / 2.8kg
	Printer Dimension	145 x 195x 148 mm (WxLxH)
Reliability	100KM
Weight	1.60kg
Temperature	0-45
Relative humidity	10-80%
appearance size	186*145*140mm
Application	Used for Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Super market etc.

1,Support multi interface, so it is much easy to connect with different interface for one machine.

2,High print speed at 250mm/s, with unique design, use friendly.

3,Versatile and adaptable, can be used as desktop or wall-mounting mode

4,Easy paper loading for paper replacement; With auto cutter, full or partial cutting at optional.

5,Support printing graphics and barcode

6, All in one interface: USB+RS232+Ethernet (RJ45 ) / WiFi port)

Scangle SGT-802 is one latest model of 80MM POS thermal printer, it can support multi interface,
so it is much easy to connect with different interface to work for one machine.
