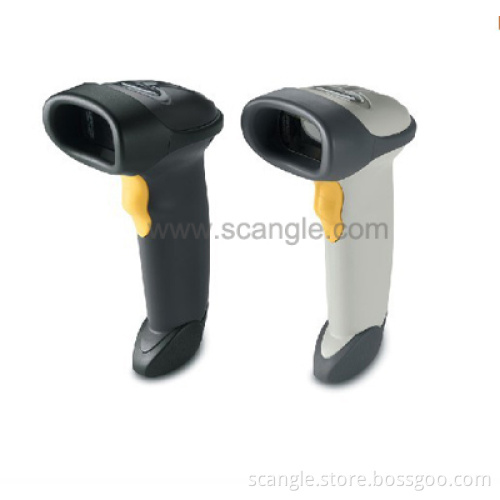

Symbol Handheld Barcode Scanner (LS2208)

LS 2208
The innovative LS 2208 of handheld barcode scanner, barcode reader from Symbol Technologies delivers performance features at an affordable price to make your buying decision easier than ever. The innovative LS 2208 handheld barcode scanner from Symbol Technologies delivers performance features at an affordable price to make your buying decision easier than ever. If you're seeking investment protection in a scanner that's small and light enough for maximum productivity, then the LS 2208 Series is the ideal scanner for you. All scanners read RSS codes.

Details
Physical Characteristics
Dimensions: 6 in. H x 2.5 in. W x 3.34 in. D
15.2 cm H x 6.3 cm W x 8.4 cm
Weight: 5.15 oz. /146 gm
Voltage and Current: 5 volts +/- 10% at 130 mA typical,
175 mA max
Power Source: Host power or external power supply
Color: Cash Register White or Twilight Black
Performance Characteristics
Scanner Type: Bi-directional
Light Source: 650 nm visible laser diode
Scan Element Frequency: 50Hz
Scan Rate: 100 scans per second typical
Nominal Working Distance: From contact to 17 in. /43 cm
On 100% U. P. C. /EAN symbols
Print Contrast: 20% minimum reflective difference
Roll (Tilt): 1 1 +/- 30 degrees
Pitch: 2 2 +/- 65 degrees
Skew (Yaw): 3 3 +/- 60 degrees
Decode Capability: UPC/EAN, UPC/EAN with Supplementals,
UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic,
Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5,
Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants,
Chinese 2 of 5
Interfaces Supported: RS232, Keyboard Wedge,
Wand, IBM 468X/9X, USB, Synapse and Undecoded
User Environment
Operating Temp.: 32° To 122° F/0° To 50° C
Storage Temp.: -40° To 158° F/-40° To 70° C
Humidity: 5% to 95% relative humidity, noncondensing
Drop Specifications: Unit functions normally after repeated
5 ft. /1.5 m drops to concrete
Ambient Light Immune to direct exposure of normal
Immunity: Office and factory lighting conditions, as
Well as direct exposure to sunlight
Electrostatic Conforms to 15 kV air discharge and 8 kV
Discharge: Of contact discharge
Accessories
Hands-Free Intellistand™ : 20-61019-01 or 20-61019-02
Regulatory
Electrical Safety: Certified to UL1950, CSA C22.2 No. 950,
EN60950/IEC950
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B,
European Union EMC Directive,
Australian SMA, Taiwan EMC, Japan
VCCI/MITI/Dentori.
Laser Safety: CDRH Class II, IEC Class 2
Environmental: Compliant with RoHS directive 2002/95/EEC
Warranty
The Symbol LS2208 is warranted against defects in workmanship
And materials for a period of 5 years (60 months) from date of
Shipment, provided that the product remains unmodified and is
Operated under normal and proper conditions. See full warranty
For details.
1 - Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise
2 - Pitch: Controleed by dropping or raising the wrist
3 - Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa
