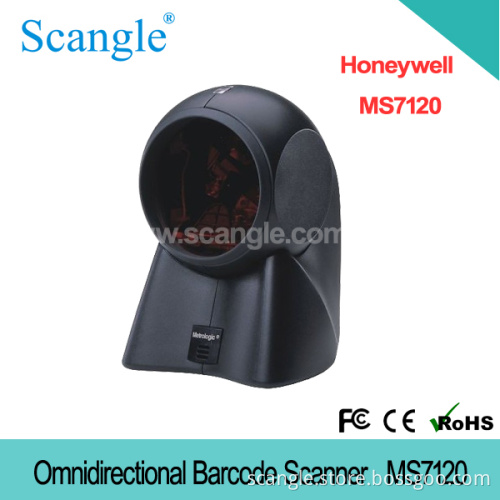

Honeywell Desk Top Omnidirectional Barcode Scanner (MS-7120)

MS 7120, orbit barcode reader, laser barcode scanner
MS7120 Omnidirectional Handheld Barcode Scanner/barcode reader
Orbit is an aggressive, omni directional presentation/ hand-held laser barcode scanner. Orbit is lightweight, rugged, small in size and BIG in performance.
*Fully automatic scan operation
*PowerLink, user-replaceable cables
*Mountable to a wall or under check-writing stands
* Customize the depth-of-field for tight scanning environments
* Custom edit the bar code data to meet the requirements of the application
*Multiple beeper tones
Light Source Visible Laser Diode 675 nm 5nm
Laser Power 0.681 mW (peak)
Depth Field 0 mm - 215mm(0" - 8.5") for 0.33 mm (13 mil) bar codes
Width of Field 60 mm (2.4") @face; 105 mm (4.1") @216 mm (8.5")
Scan Speed 1200 scan lines per second
Scan Pattern 5 fields of 4 parallel lines (omnidirectional); 20 lines total
Decode Auto discriminates all standard bar codes; For their symbologies call Metrologic
Interface PC Keyboard Wedge, RS232, OCIA, Light Pen, 46XX, Stand Alone Keyboard
Print Contrast 35% minimum reflectance difference
Number of Characters Read Up to 80 data characters
Roll, Pitch, Yaw 360, 60, 60
Beeper 7 tones or no beep
Indicators(LED) Green = laser on, ready to scan, Red = good read

Metrologic MS-7120 Orbit Omni Directional Scanner
