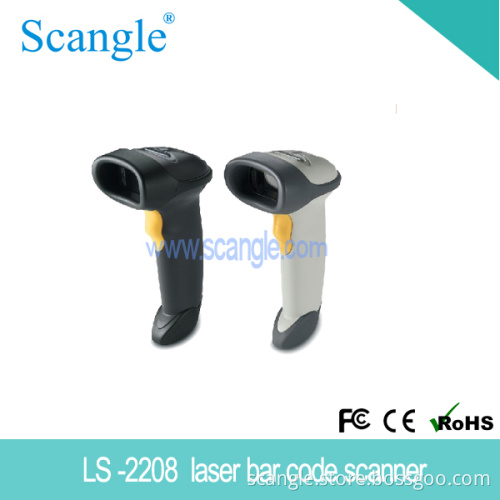

Symbol Laser Barcode Scanner (LS-2208)

1. Symbol LS 2208 barcode scanner, Handheld barcode scanner, barcode reader, USB port, Plug and play.
Details:
Physical Characteristics
Dimensions: 6 in. H X 2.5 in. W X 3.34 in. D
15.2 cm H X 6.3 cm W X 8.4 cm
Weight: 5.15 oz. /146 gm
Voltage and Current: 5 volts +/- 10% at 130 mA typical, 175 mA max
Power Source: Host power or external power supply
Color: Cash Register White or Twilight Black
Performance Characteristics
Scanner Type: Bi-directional
Light Source: 650 nm visible laser diode
Scan Element Frequency: 50Hz
Scan Rate: 100 scans per second typical
Nominal Working Distance: From contact to 17 in. /43 cm
On 100% U. P. C. /EAN symbols
Print Contrast: 20% minimum reflective difference
Roll (Tilt): 1 1 +/- 30 degrees
Pitch: 2 2 +/- 65 degrees
Skew (Yaw): 3 3 +/- 60 degrees
Decode Capability: UPC/EAN, UPC/EAN with Supplementals,
UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants,
Chinese 2 of 5
Interfaces Supported: RS232, Keyboard Wedge,
Wand, IBM 468X/9X, USB, Synapse and Undecoded
User Environment
Operating Temp.: 32° To 122° F/0° To 50° C
Storage Temp.: -40° To 158° F/-40° To 70° C
Humidity: 5% to 95% relative humidity, noncondensing
Drop Specifications: Unit functions normally after repeated
5 ft. /1.5 m drops to concrete
Ambient Light Immune to direct exposure of normal
Immunity: Office and factory lighting conditions, asWell as direct exposure to sunlight Electrostatic Conforms to 15 kV air discharge and 8 kV
Discharge: Of contact discharge
Accessories
Hands-Free Intellistand™ : 20-61019-01 or 20-61019-02
Regulatory
Electrical Safety: Certified to UL1950, CSA C22.2 No. 950,
EN60950/IEC950
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B,
European Union EMC Directive,
Australian SMA, Taiwan EMC, Japan
VCCI/MITI/Dentori.
Laser Safety: CDRH Class II, IEC Class 2
Environmental: Compliant with RoHS directive 2002/95/EEC

Warranty
The Symbol LS2208 is warranted against defects in workmanship And materials for a period of 5 years (60 months) from date of Shipment, provided that the product remains unmodified and is Operated under normal and proper conditions. See full warranty

For details.
1 - Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise
2 - Pitch: Controleed by dropping or raising the wrist
3 - Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa
