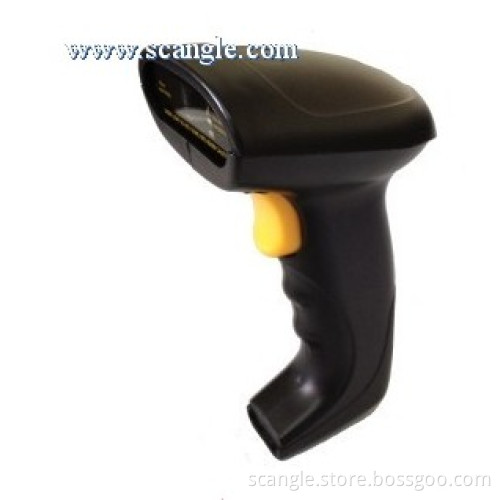

Handheld Barcode Reader (SGT-2206)

Get Latest Price

Payment Type:: L/C, T/T, Western Union, Money Gram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union, Money Gram

Product Description

Model No.: SGT- 2206,
Laser Scanner'>Barcode Scanner, handheld Barcode Reader,
Parameter of HandHeld Laser barcode Scanner, barcode reader, Electrical specifications
Voltage requirement: DC 5V
Current concumption: Max 60mA
Idle current: 20mA
Optical specifications
Light source 670nm
Scan method vibrating mirror
Scan rate 100 scans/sec
Decode rate 200 decodes/sec
Reading pitch angle +60°
Reading skew angle +30°
Reading rotation angle 15°
Reading width 36cm
Identification
Supported barcode symbologies:
ChinesePost; Codebar; Code39; Code128, Ean8; Ean13, Ean128; ISBN; ISSN; Industrial 2of5, Interleaved 2of5; MSI/Plessey; UPC.

Functionality
Trigger mode: Manual, auto-trigger, auto sense.
Configuration: Over300 parameters can be set by RS232 or menu book
Available interfaces: Keyboard Wedge: XT/AT and PS2, RS232, USB
Environmental specifications
Temperature in operation 0-40°
Temperature in storage -10-60°
Humidity in storage 20-80%
Ambient fluorescent light 20-90%
Ambient white light 4.0 lux max
Ambient incandescent light rejection 50.0lux max
Shock drop test 1.5m drop onto concrete surface
Shock vibration test 12-100Hz with 2G for 1 hour
Physical specifications
Dimensions (l× W× D) 70× 70× 170mm
Case material ABS; PS; PC
Weight body 145g(excl. Cable)
Cable length 2m
Connector keyboard wedge miniDIN6
Connector RS232 dB9(MALE)
Connector USB USB-A(2.0)
Laser class Class I
