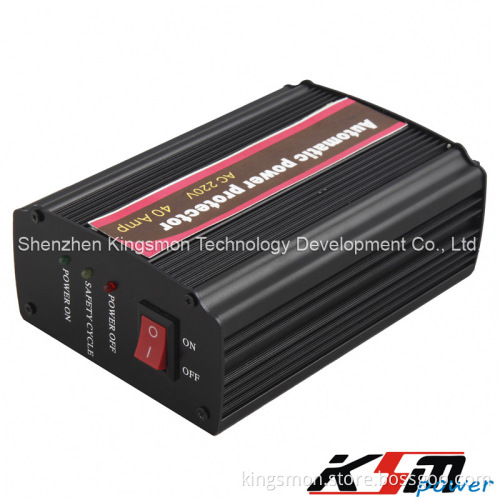

Automatic Power Protector

Automatic Power protector

1. Function:


The compressor of refrigerator would be damaged after the voltage of power grid is lower or higher than normal, and then electrify immediately. This product with automatic protection will cut the power supply automatically, when the voltage is higher or lower than rated voltage. The first time you using your refrigarator or meeting power failure then restart again, the protector will delay 3 to 5 minutes to start.


2. Indicate LED instruction

A. Red LED: Indicate that it is on protection state, no voltage output.

B. Yellow LED: Indicate that it is on delay state, no voltage output.

C. Green LED: Indicate that it is on normal working state, output voltage.


3. Technique parameter
A. Working Voltage: AC115V or AC220V
B. Safety cycle: About 4minutes
C. Led indicators: Power on (green), Power off (red), Safety cycle (yellow)
D. Rated current: 40AMP
