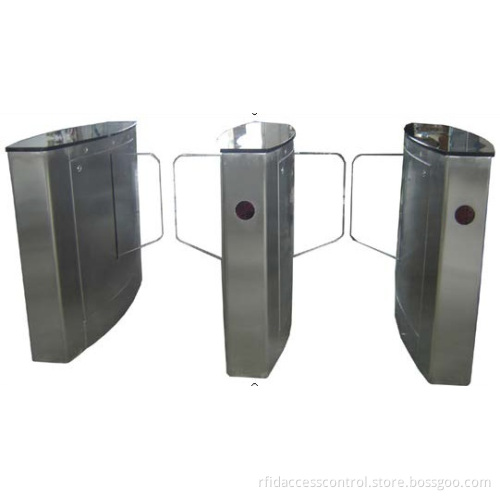

Optical Glass Swing Turnstile (YET-P902)

Optical Glass Swing Turnstile (YET-P902)

Sliding Gate Turnstile, Tripod Barrier, Swing gate turnstile, Wing gate turnstile, Access Control Systems, Optical Turnstile, Half heitht turnstile, Full height turnstile
Half-height Turnstile Glass Swing Barrier Turnstile
Six kinds of operation modes, can be adjusted to normal open.

Specification:
304 Stainless steel case with nice shape and solid structure. The glass is made of organic glass.
LED indicate passage status, and provide directional guide.
Six kinds of operation modes, can be adjusted to normal open.
It has perfect security protection system.
With automatic detection and alarm warning functions, convenient for use and maintenance.
It has memory function, can setup access control of many times or single time.
Compatible with reader and writers of IC card, ID card, Magnetic card, bar code card and etc.
It has standard external interfaces, can connect with all kinds of read/write systems.
Technical Parameters:

Structure: Frame construction/ stainless steel case (thickness: 1.5mm)
Production technology: Computer digital controlled laser cutting
Dimension: 1200*330*1000mm LWH
Passage Width: 550-600mm
Weight: 120kg
Open/close time: 1-2 seconds
Passage speed: 40 person/ minute ( normal close ), 50 people/minute ( normal open )
Communication: RS485 (distance ≤ 1200m)
Power: 50W
Power supply voltage: AC220± 10% V, 50Hz
Driving electric motor: Brush-typed DC motor (24V), 100W.
Operating life: Three million times
LED indicator: 2 units
Card reader windows: 2 units
Auto resetting time after break down: 10 seconds
Input interface: Dry contact signal or +12V level signal or DV 12V pulse signal of pulse width ≥ 100ms; Drive current ≥ 10mA
Working environment: Indoor or out door (under overcast shelf) - Working temperature: -10° C--+60° C Relative humidity: ≤ 90%, non dewing.
