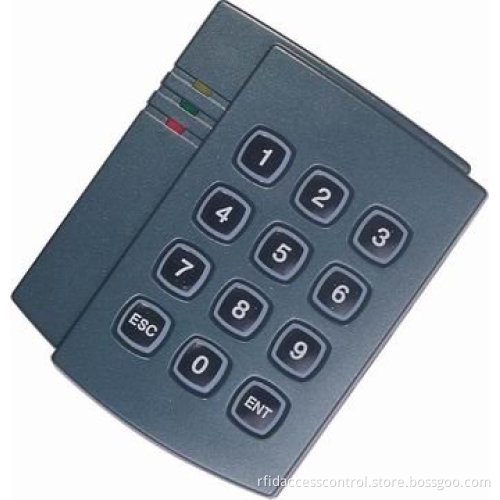

Waterproof Smart ID Card Keypad Reader (008F)

Waterproof Smart ID Card Keypad Reader (008F)
RFID Reader supplier, UHF RFID Reader manufacturer, FID Reader, Passive RFID Reader company, RFID Reader factory
Specifications

Waterproof Smart ID/IC Card Keypad Reader
1. Wiegand26/34. RS485/232 interface
2.2-15cm Proximity Range
3. PVC Case Material

Specification

· Wiegand 26bits/ Wiegand34bits Standard Format Data Output
· Support ID (UEM 4100, 125 kHz, 64bits, Manchester Code) Card or PIN Opening Door Mode.
· Less than 0.2 second Response Speed
· Less than 0.5 seconds Proximity Time Distance:
· 2-15cm Proximity Range
· -25 to 75 Ambient Temperature
· 10%-90% Ambient Humidity
· Built-in Antenna
· Built-in LED (Double Color LED)
· Built-in Loud Speaker (Buzzer)
· DC 5V-16V Working Voltage. Standard Direct Current 12V
· 70mA Working Current
· 100 Meters Communication Distance
· Real Time Data Transfer
· Dark Grey or white Color
· Standard Style (3× 4) Keyboard Format
· PVC Case Material (Black Resin for Water-Proof Function)
· 108*88*32(mm)

Installation

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection
