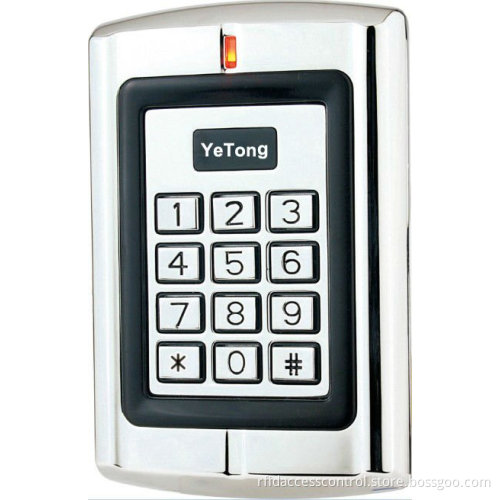

Metal Shell Stand Alone Access Controller

Metal Shell Stand Alone Access Controller (YET-7615)
Access Controller, Stand Alone Access Controller, Metal Shell Stand Alone Access Controller
Metal Shell Keypad & Standalone Access Control
1 master, 1000 users
Stainless Steel, Waterproof optional
With Backlight

Metal Shell Keypad Access Control & Card Reader

It is a widely used access control system in offices. It is also suitable for entrances and exits at offices, factories, hotels, schools and other public places. All input/output uses anti-jamming protection and over-voltage/circuit protection.

Specification:

DC Supply Voltage: Low voltage input 12 ± 10%VDC unregulated
Current Consumption: 100mA @ quiescent maximum
Door Relay: 5AMP 12VDC
Alarm output load: 150mA pull current
Tamper Protection: Negative loop, normally closed
Codes: 1 Master, 1000 cards and 1000 codes.
Keypad: 12 keys, 3 LED status indicators
Card Types: EM or EM compatible
Induction Distance: 5-8cm
Memory: Non volatile eeprom memory
Operating Temperature: 0° C to 60° C (32° F to 140° F)
Keypad Housing: Metal
Dimensions: 135mm X 58mm X 30mm or 128*82*28mm.
Weight: 500g
English, German manual(other language can be customized).
