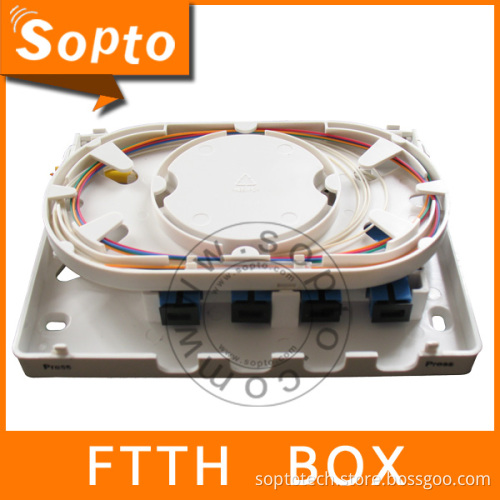

Patch Panel FTTH Fiber Access Terminal Box (FTB104B)

Patch Panel FTTH Fiber Access Terminal Box (FTB104B)

Suitable for FTTX project of high rise building, achieve through connection and branch connection
Between distribution cable and customer cable in corridor.

Features:
-Suitable for wall mounted in siloof building corridor
-Small size, light weight, high capacity, easy to splice and installation
-Support through connection style
-Pre-installed one PC of 24 fibers splice tray exclusively for FTTH drop cable
-Suitable for connection one distribution cable with 24 PCS customer FTTH drop cables
-Mechanical splice or fusion splice

This box could be used for wall-mounted and rack-mounted applications:
The base and cover of the box adopts"self-clip" method, which is easy and convenient to open and close;
Could be used for adaptors such as SC, FC, etc;
The max capacity is 4 fibers.

Specifications:
-Item: FTB104B
-Dimension(HxWxD): 268x320x90mm
-Cable diameter(mm): 10~22
-Cable ports: 1 ports
-Splice tray cores: 24(single)
-No. Of splice tray: 1
-Max capacity: 24 (single fiber)
