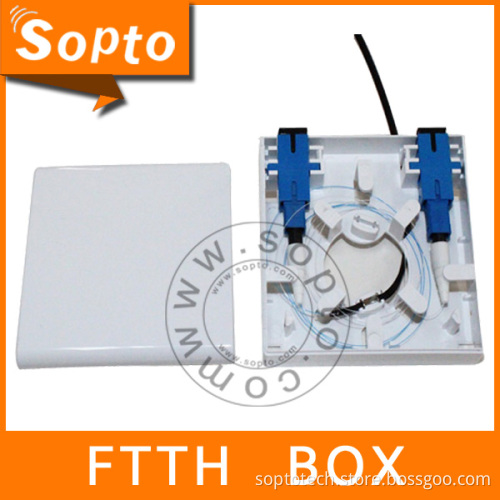

2 Port Fiber Optic FTTH Termianl Box (FTB-102)

Suitable for FTTX project of high rise building, achieve through connection and branch connection
Between distribution cable and customer cable in corridor.

Features:
-Suitable for wall mounted in siloof building corridor
-Small size, light weight, high capacity, easy to splice and installation
-Support through connection style
-Pre-installed one PC of 24 fibers splice tray exclusively for FTTH drop cable
-Suitable for connection one distribution cable with 24 PCS customer FTTH drop cables
-Mechanical splice or fusion splice

Specifications:
Item FTB0102
Dimension(HxWxD) 320x240x45mm
Cable diameter(mm) 10~22
Cable ports 2 ports
Splice tray cores 24(single)
No. Of splice tray 1
Max capacity 72 (single fiber)
