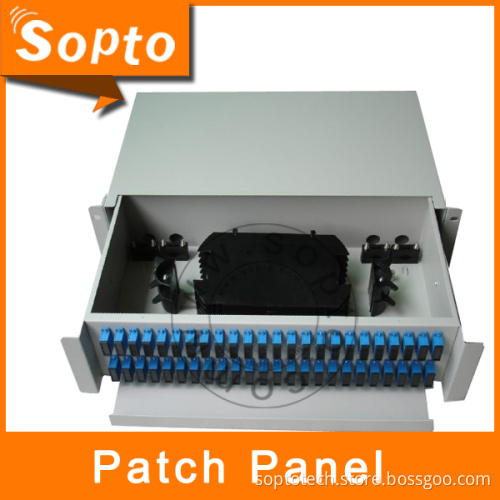

96 Core Drawer Type Rack Mounted ODF

96 core drawer type rack mounted ODF



19-inch 2U Fiber Terminal Box Drawer Rack-Mounted 96 Port ODF
Features:
19-inch rack fiber optical FC type
96 ports patch panel drawer type
2.5U rack mounted
Compatible with SC, FC, LC and ST adaptor and suitable for ribbon and single fibers
SM or MM, simplex or duplex
Packing accessories: ODF rack, splice tray, adaptors and pigtails
Color: Black, white, light grey
Material: Cold rolled carbon sheet steel
The body of patch panel set metal orbit, is easy to be pulled and pushed
Size: 480*320*110mm
Height: 2.5U
Compatible with SC, FC, LC and ST Adapter
Core Capacity: 96 cores Cable port (Max) 2-4
Weight: 5.05kgs
Application:
Telecommunication networks
CATV Networks; LAN Network
Active device termination
FTTH
Benefits:
Low excess loss& High performance
