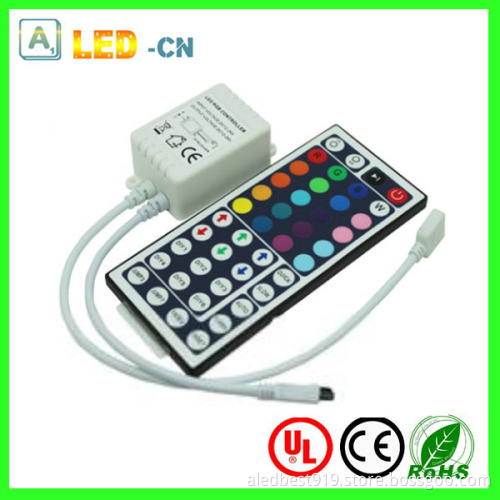

44 Keys RGB IR LED Light Controller

44 KEYS RGB IR LED light controller

Summarization
44-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. Besides, you also could adjust random color by yourself freely.

Technical Parameters
Working temperature: -20-60
Supply voltage: DC5V, 12V, 18V, 24V optional (specify the required voltage on orders)
0utput: 3 channels
Connecting mode: Common anode
External dimension: L63*W35*H22 mm
Controller dimension: L125*W56*H7mm
Packing size: L130*W60*H35 mm
Net weight: 60g
Gross weight: 90 g
Static power consumption: <1 W
Output current: <2 A (each channel)
Output power: 5V: <30W, 12V: <72W, 24V: <144W
