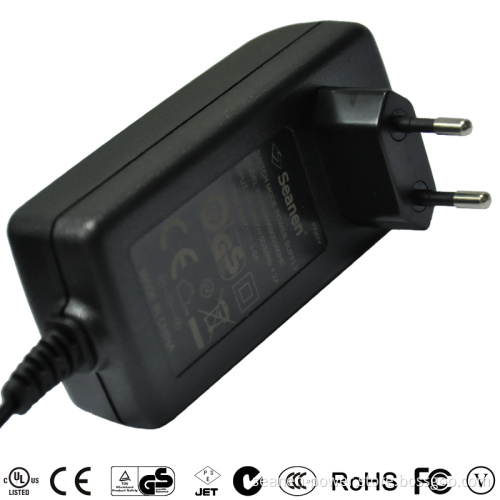

9V 3A EU AC/ DC Switching Power Adapter
  • 9V 3A EU AC/ DC Switching Power Adapter
9V 3A EU AC/ DC Switching Power Adapter

9V 3A EU AC/ DC Switching Power Adapter

Payment Type:
L/C, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C, T/T
Product Description
Product Description
9V 3A EU AC/DC Adapter
High-quality AC/DC adapter 18V 2.5A 45W series
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 5VDC to 24VDC
4) Output current: Available from 100mA to 5000mA
5) Output power: 45W max
6)Available Style: Wall mount, Desktop type, interchangeable pins type
7) RoHS, PAHs, REACH, WEEE compliant
8) Energy efficiency: CEC V, ERP V
9) Rated Input current: 1.2A max
10) Inrush current: Limited to 80A, cold start
11) Leakage Current: 0.25mA max
12) Load regulation: ± 5%
13) Ripple and noise: < 120MVP-p
14) MTBF: 50K hours at 25'C
15) LED indicator: Optional
16) Safety standard: EN 60950-1, CSA C22.2, UL60950

Safety Approvals
UL/cUL/GS/CE/CB/SAA/CCC/PSE/FCC

Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection

Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
