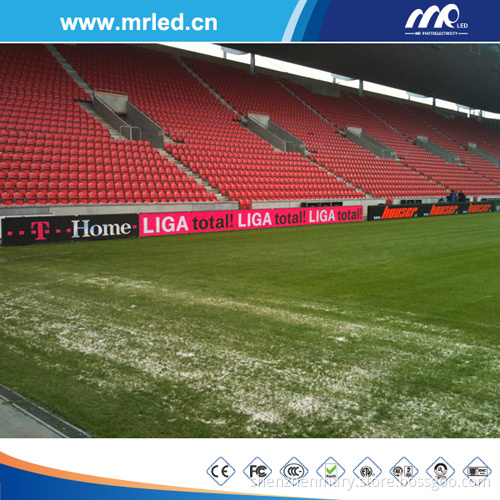

Stadium LED Display with High Definition in Henan Province (P20)

Get Latest Price

Payment Type:: L/C, T/T, D/P

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, D/P

Product Description

pH16 outdoor LED display
16bit gray level
Can display 281 trillion colors
1. Pixel
Pixel pitch: 16 mm
Pixel density: 3906 dots / sq. M.
Pixel configuration: 2R1G1B
LED specification: DIP546
2. Module
Module matrix (pixel dots): 16*8
Module size: 256*128 mm
Module power consumption: 35W
3. Cabinet
Cabinet matrix (pixel dots): 64*48
Cabinet size: 1024*768*120mm
Cabinet pixel density: 3072 dots
Protection level: IP65
Cabinet weight: 60kg
4. Main technical parameter
Best viewing distance: 14m
Best viewing angle: 110° (horizontal)
Max power consumption: 1000W / sq. M.
Control mode: Synchronization
Graphics card: DVI Graphics card
Drive mode: Static constant current drive
Exchange frame rate: ≥ 60Hz
Refresh rate: ≥ 1200Hz
Grey grade: 65536 grade
White balance brightness: ≥ 6500CD/sq. M
Working environment temperature: -20-50
Working voltage: AC100V-240V, 50-60Hz
Brightness adjusted way: Manual, 256 level; Auto, 8 level.
MTBF: ≥ 10, 000 hours
Screen lifetime: 100 thousand hours
Blind DOT rate: 0.0003
Computer operating system: WIN98, WINXP, WIN2000, etc.
Video signal: RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control system: DVI Graphics card + sending card + receiving card
PC display mode: 1024*768
5. With CE, RoHS, FCC Certification, ISO 9002
