Indoor LED Display

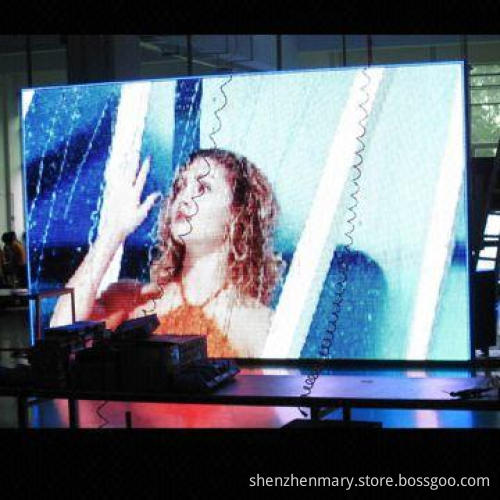

pH6 3-in-1 SMD indoor full color LED display screen
1. Pixel
Pixel pitch: 6 mm
Pixel density: 27777 dots / sq. M.
Pixel configuration: 1R1G1B
LED specification: SMD1210
2. Module
Module matrix (pixel dots): 32*16
Module size: 192*96 mm
Module power consumption: 25W
3. Cabinet
Cabinet matrix (pixel dots): 128*96
Cabinet size: 768*576*120 mm
Cabinet pixel density: 12288 dots
Protection level: IP43
Cabinet weight: 32kg
4. Main technical parameter
Best viewing distance: 5m
Best viewing angle: 140° (horizontal)
Max power consumption: 1050W / sq. M.
Control mode: Synchronization
Graphics card: DVI Graphics card
Drive mode: Constant current drive 1/8
Exchange frame rate: ≥ 60Hz
Refresh rate: ≥ 1200Hz
Grey grade: 65536 grade
White balance brightness: ≥ 1200CD/sq. M
Working environment temperature: -20-50
Working voltage: AC100V-240V, 50-60Hz
Brightness adjusted way: Manual, 256 level; Auto, 8 level.
MTBF: ≥ 10, 000 hours
Screen lifetime: 100 thousand hours
Blind DOT rate: 0.0003
Computer operating system: WIN98, WINXP, WIN2000, etc.
Video signal: RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control system: DVI Graphics card + sending card + receiving card
PC display mode: 1024*768
5. with CE, RoHS, FCC Certification, ISO9002
