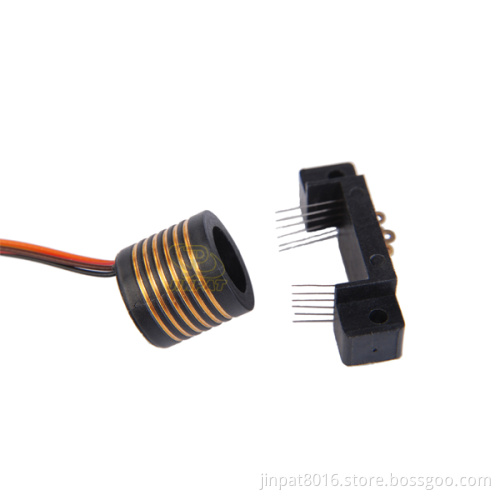

Separate Slip Ring (LPS-06, 6 circuits @ 3A)

Features

6 circuits models
Speed up to 300 rpm continuous
Gold-Gold contacts
250mm standard lead length
Compatible with data bus protocols
Sealed units are available
Flexible, color-coded, silver-plated, lead wires
Precision ball bearings meet or exceed life requirements for most commercial applications

Advantage

Low torque minimizes system torque budget
Compact design to fit in the most demanding space.
Smooth running
Low electrical noise
Quick shipment per your urgent requirement
360° Continuous rotation
High bandwidth transfer capability

Main Application

Electrical test equipment
Manufacturing and process control equipment
Indexing tables
CCTV pan / tilt camera mounts
Robotics, rotary sensors, urgent illumination equipment
Exhibit / display equipment
Medical equipment
Aviation, military, instrument
Mini-type wire-rolling machine
Custom Machinery
OEM Machinery

Description

The LPS-06 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPS-06 provides smoother running, lower torque and lower electrical noise than competitive slip rings.
