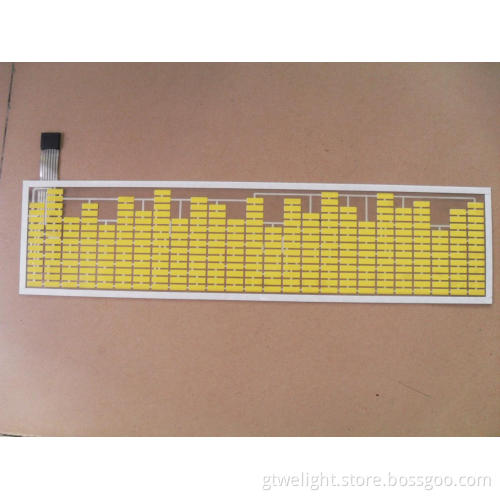

Yellow Light EL Equalizer Sticker with 12V Inverter

Equalizer Car Sticker / EL Car Sticker /Equalizer EL Car Sticker/Sound Actived Car Sticker/EL Flash Car Sticker

Standard Sizes
Custom size available

Specialized in Equalizer Car Sticker making, below sizes available,

45X11cm
70X16cm ===> most popular! Hot selling! ! !
90X25cm

EL Car Sticker/EL Auto Guage/Sound Animated Car Sticker

1. Characters:

Flexible and thin
Cold light, no heat generated, Green Products.
Low power consumption: 80W per square meter
Easy installed
With Attractive animation with soft light, Best choice for advertising.
Can be with customized printing on
Sound effective
Color: Blue, green, greenblue or any customized color
Panel+ DC12V inverter+transparent sticker of knobs(ciggartte lighter)

2. Specifications:

1. Thickness: 0.2-0.5mm 8. Bend Radius: 0.25"
2. Property: Flexible 9. Operating Humidity: 0-90%
3. Uselife: 8, 000-12, 000Hrs 10. Operating Temperature: -60° C_60° C
4. Size: A4--A6 and Customized 11. Capacitance: 2-5nF/sq. In
5. Lighting effect: Sound active 12. Input Voltage: 12V DC
6. Certificate: CE & RoHS 13. Best Working Voltage: 90-120Vac
7. Brightness: 80-120CD/sq. M 14. Best Working Frequency: 600-800Hz

3. Use Method:
This product is furnished with double faced adhesive tape(and is covered with a protective membrane), you can remove membrance and stick it to the car back windshield.

Wire Connection:

Step1: Connect the Equalizer Car Sticker with the 12 VDC Inverter.
Step2: Conncet the inverter with the Cigarette Lighter into car.
Step3: Inserted the Cigarette Lighter into car.
Step4: Adjust the sound sensor to make lamp lightening when there is a sound nearby.

EL sound active application:

1 Put on car window for car advertising

2 Put on car window with family photo

3 Put on car window for company advertising

4 Put on car window for safe remind
