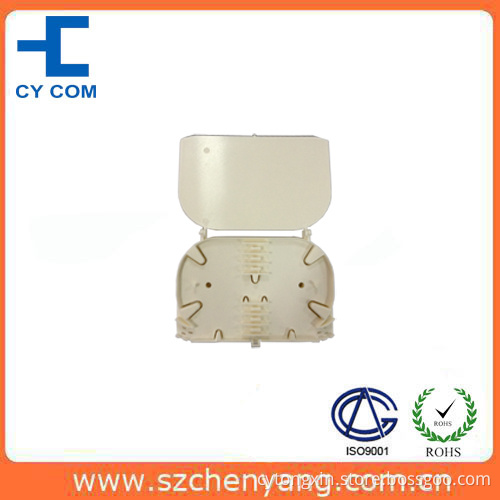

Fiber Optic Splice Tray (single fiber-24 fiber)

Specifications
Manufacturer
Fiber optic splice tray
Best quality, competitive price
Conform to ISO9001: 2008, RoHS...

Detailed Product Description
FIber Optic ODF provides optical distribution frame, rack mount fiber splice and distribution enclosure, termination box
Rack mount Box, Drawer, Rotate type

Provides optical distribution frame, rack mount fiber splice and distribution enclosure,
Termination box

Applications
1U Fiber patch panel series of optic distribution boxes, which are middle capacity and
Both side operation, are suitable for central offices onnection points in the OAN, data centers, local area network etc...

Features
1) Reliable fastening, Stripping and earthling devices for optic fiber
2) Suitable for LC, LCD, SC, SCD, FC, LCQ, ST and STD adaptor
3) Fit for 19 rack
4) Accessories make fiber avoid damaging.
5) Slide out design, easy to access the back and splicer
6) High-quality steel, beautiful appearance.
7) Maximum capacity: 48 fibers
8) All material is RoHS compliant
Main performance
Optics performance
1) Insert loss: ≤ 0.2dB
2) Return loss: 50dB (UPC), 60dB (APC)
3) Durability: 1000 Mating
4) Wavelength: 850nm, 1310nm, 1550nm

Operating condition
1) Operating temperature: -25° C~+40° C
2)Storage temperature: -25° C~+55° C
3) Relative humidity: ≤ 85%(+30° C
4)Air pressure: 70Kpa~106Kpa
