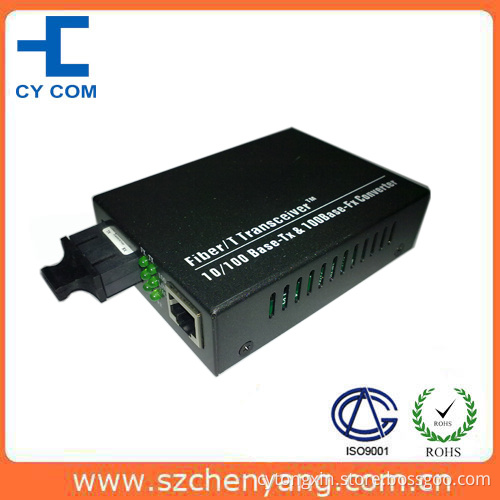

Fiber Optic Media Converter (10/100M 1310nm dual fiber SM 40Km SC)

10/100M Ethernet Fiber Media Converter

CY Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users. CY Series Converters could be used alone; But Converter Card should be inserted to 16 slots RACK supplied by CY Crop., which is suitable for the use of Network Centre.


Main features
The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
UTP port supports MDI / MDI-X auto crossover.
Supporting flow control
Supporting 1552 bytes packet
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
Supports link fault pass through function
Design of internal or external power supply for selection by end-users




Technical Specifications
Operating standard:
IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX/FX Fast-Ethernet
IEEE802.3x
MAC address table: 1K
Data Buffer: 128Kb RAM
Connector: UTP: RJ-45, 10/100Mbps; Fiber: SC, 100Mbps
Cable:
UTP: Cat. 5 UTP (the max distance up to100m)
Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μ M(the max distance up to 90km)
Flow control
Full Duplex: IEEE802.3x
Half Duplex: Back pressure
LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power: Input: AC 110~265V or DC: -36V~-72V
Output: DC 5V 1A
Conversion mode: Medium conversion
MTBF: 80, 000 hours
Ambient temperature: 0 ~ +50C
Storage temperature: -20 ~ +70C
Humidity: 5% ~ 90%
Dimensions:
Power external: 26 (high) x 70 (width) x 94 (length) mm
Power internal type: 30 (high) x 110 (width) x 140 (length) mm
