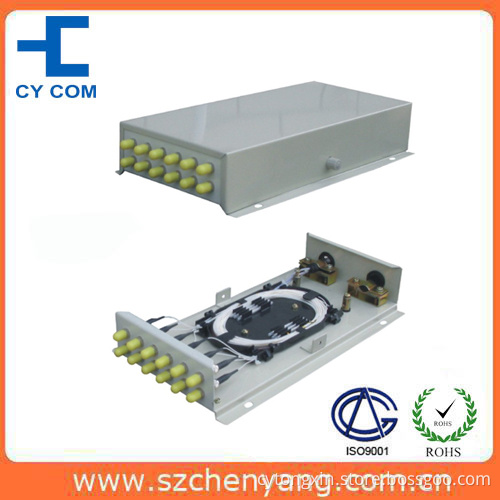

Fiber Optic Terminal Box (Wall mount ST 12)

Specifications
1.19'' standard structure
2. FC/SC/ST/LC adapter
3. Rack moun/wall mount
4. Verified compan
Fiber optic terminal box
Brief Introduction

Optic Fiber Termination Box suitable for indoor and cable, direct successor and subsequent branches, and protection of fiber optic cable and wiring Pigtail role. Passive optical devices for optical fiber transmission system to provide the media, such as linking and fixed role.

Passive optical fiber devices typically include adapters, optical fiber activities connectors, fiber patch panels, optical attenuator, optical splitter, optical wavelength division multiplexing, optical fiber cable, etc.

Applications

1. Security System
2. Medical TV
3. Television and telephone conference
4. Building control system
5. Intelligent Traffic Monitoring System (ITS)
6. Distance multimedia teaching / campus monitor
7. Long-distance radio and television transmission system

Features

1. Material: SPCC or AL
2.19" standard slide-out design, easy and convenient on assembling...
3. Cabinet surface covered with electrostatic powder coating, luxury and beacutful.
5. Bend radius of optical fiber more than 40mm
6. Easy to access the back and splice tray.


Technical parameters:

Operating Temperature: -40 ° C to +60 ° C
Relative Humidity: ≤ 95% (+40 ° C)
Atmospheric pressure: 70 Kpa ~ 106Kpa
Connector loss (including swaps and duplication insert): ≤ 0.5 dB
Return Loss: PC ≥ 40 dB, UPC ≥ 50 dB, 60 dB APC ≥
Box grounding devices and high-voltage protection box insulation resistance between ≥ 1000 M Ω /500 V (DC)
Box grounding devices and high-voltage protection of withstanding voltage box ≥ 3000 V (DC) / 1min no breakdown, no flashover
