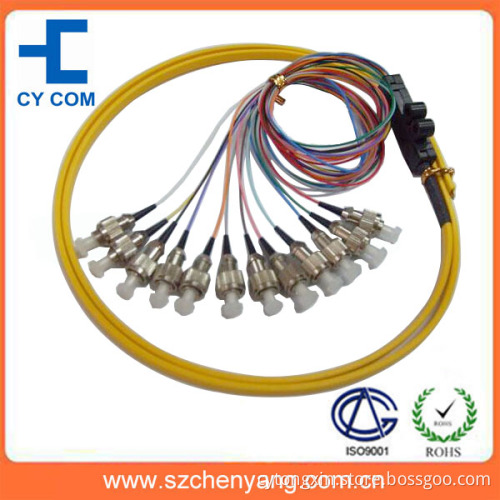

FC/SC/ST 12 Core Ribbon Packing Fiber Optic Pigtail

FC/SC/ST 12 Core Ribbon Packing Fiber Optic Pigtail
Description
Bundle series, only one end connected to the connector, and the other end is the broken ends of a single fiber, op-
Tical fiber core with others through the welding phase Even, and often appear in the terminal box, used to connect
Optical fiber cable and terminal equipment.
Ribbon Series to multiple single fiber by coloring, stacked zone and the secondary coating optical fiber cable with
As a unit into. Optical fiber with small volume. The load density of the fiber cable can be improved.
The pigtail is divided into tail multimode fiber and single mode fiber. Multimode fiber tail is orange, wavelength of
850 nm, transmission distance is 500 m, used for short distance interconnection. Single-mode pigtail is yellow,
There are two kinds of wavelength, 1310 nm and 1550 nm, transmission distance 10 km and 40 km respectively.

Features
Low insertion loss, high return loss;
High credibility and stability;
Fiber cores: 4, 6, 8, 12, 24, 48...
Joint Specification: FC, SC, ST, LC;
Cable material: PVC, OM1, OM2 or Om3 can be chose.
In Complying with customer's request, we could design and
Produce pigtails in all kinds of specifications and models.

Application
Telecommuncation network;
Computer LAN;
Cable televison network;
Connection of optical cable and light receiver.
