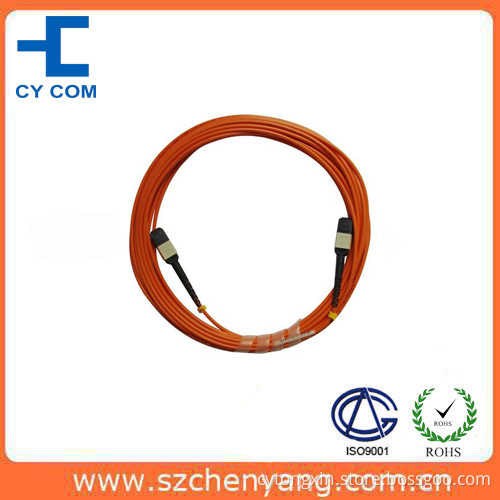

Mm Fiber Patch Cord/ MPO Series

Description:

MT family is an array technology providing quick connection for 4, 8 or 12 fibers. It reduces time and cost of installation. Fiber alignment is achieved with high precision
Guide pins. The ferrules and connectors are manufactured to IEC 61754-5 and 61754-7
Respectively.

The MT family has two catagories:
1) MPO or MTP* connector assembled to
Ribbon(or ribbonized) cable or bare ribbon.
Connectors with push-pull latching
Mechanism are coupled via an adapter.
MTP has an extra feature over MPO with a removable housing for re-polishing.
2) MT ferrule with fiber ribbon. MT ferrules are coupled using a spring clamp only.

Multimode connectors are flat polished, and single mode connectors are 8° Angle-polished. Other end-face polishes are provided on request.

Features:

Small form factor design
Pull-proof
Non-optical disconnect performance
High quality zirconia ferrules
Materials meet RoHS requirements
Riser, Plenum, and LSZH cables available

Application:

Local Area Networks

Optical switch connections
Fiber Channel
Parallel interconnection
Miniature OE modules
