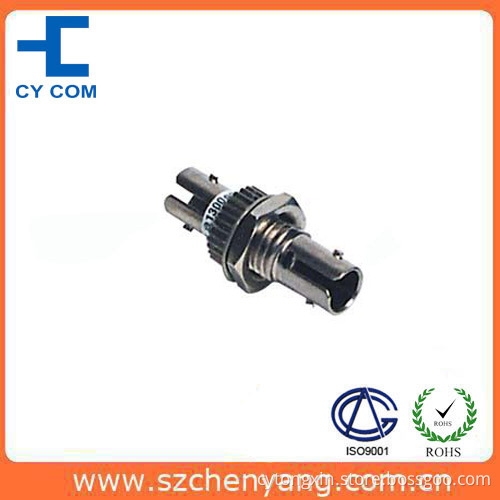

St-St Fixed Type Fiber Optic Attenuator

Description
Fixed Attenuator
Use the way of flange, it can use a variety of ways of joint.
FC, SC, ST, LC can be chose. Easy installation, simple
Structure.
Application: Optical fiber communcation systems, CATV,
Measurment of high power fiber optic devices.

Female and male Attenuator
Resistance to high power laser source, light weight, small size
, high precision, good stability, a variety of forms, easy to use.
Application: Optic Distribution Frame, fiber optic network system
, high-speed optical fiber transmission system, CATV, long-dist-
Ance DWDM system, OADM.

In-line Type Variable Attenuator
Attenuation of high precision, low additional loss, good stability,
Adjustable optical attenuator.
Application: Optical fiber communcation systems, CATV, measu-
Rment of high power fiber optic devices.

For Example: Female♂-FC/PC-SC/PC-SM-5dB
Attenuation Type: Female & male, Fixed, In-line, Variable
Connector Type: FC, SC, LC, ST
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode(SM: 9/125μ M), Multimode(MM: 50/125μ M or 62.5/125μ M)
Attenuation Value: 1dB, 3dB, 5dB, 10dB, 15dB, 20dB, 25dB, 30dB
