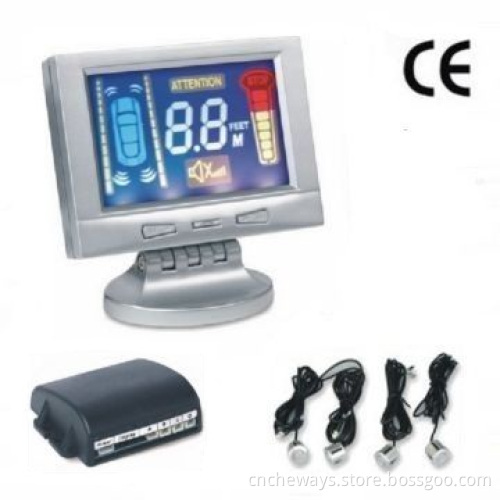

High Accuracy LCD Reverse Sensor (C-604)

SHENZHEN CHEWAYS ELECTRONICS CO., LTD is a professional manufacturer of parking sensor and car camera and we have been in this line for many years.



Product parameters:

1. Rated operational voltage: 12 V

2. Scope of operational voltage: 10v-16v DC

3. Rated operational current: 20mA-500mA

4. Detection distance: 0.3-2.0m

5. Ultrasonice frequency: 40KHZ

6. Working temperaure of host computer and probe: -40-+80 degree.






1. This system starts working automatically when the reverse gear is engaged
2. Show the distance between the car and the obstacles on the LCD with soft backlight
3. Detection range is 0.1~2.5m
4. The sound frequency will become more rapid when the car draws near to obstacle
5. The system points out the distance between the car and the obstacles with human voice

Specification:

1. Mini LCD Display car parking sensor
2. There is a car image on display
3. Buzzer and human voice is optional
4. Dual CPU, 4 sensors system.
5. Obstacle orientation indication.
6. Operating voltage rating: DC12V.
7. Max power: Pmax<5W.
8. Operating temperature: -40° C~80° C.
9. Display Distance: 0.3m~2.0m.
10. Alarm Distance: 0.3m~1.5m.
11. Alarm voice: >80dB.
12. Ultrasonic frequency: 40kHz.
13. One year warranty
