Blow Molding Machine 600-800PCS/H

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

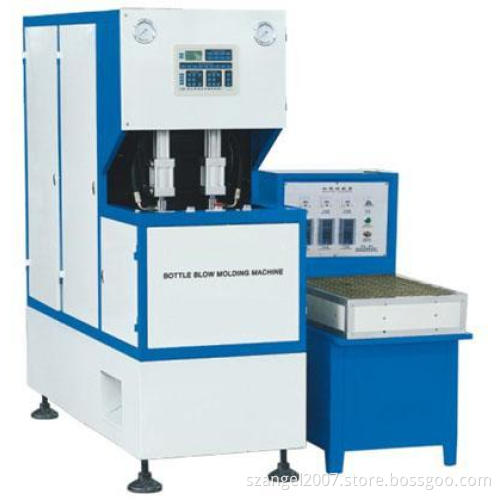

CM-8 Multifunctional stretch blow molding machine which composed with one blower and one insert type heater, can make various kind of PET water drink bottle in volume of 2000ml. This kind of machine with the features of automatic control, high out put, working safety, simple structure, need less power and convenience to operate, It is an ideal equipment for water drink industry.

Main parameter:
Container Product material / PET PP PE
Volume: 0.1-2 L
Theoretical output: 600-800 PCS/H
Preform length: 15-350 mm
Preform inner diameter: 5-38 mm
Max. Mould plate Dimenstion(L x W): 350x380mm
Max. Mould thickness mm 180
Clamping force: 45 KN
Mould opening stroke: 16 mm
Main machine (L x W x H): 160x60x161 cm
Main machine weight: 500Kg
Heater (L x W x H): 187x63x145cm
Heater weight: 250 Kg
Power: 17.5kw
