Semi-Automatic Blow Molding Machine

CM-8Y1, CM-8Y, CM-12, CM-9B Semiautomatic bottle blow molding machine
CM-A4, CM-A2, CM-A8L, CM-A6L Automatic bottle blow molding machine

Can use for bottle water from 10ml to 5gallon, from 60PCS to 1000PCS per hour. Each style is OK.

Specification:

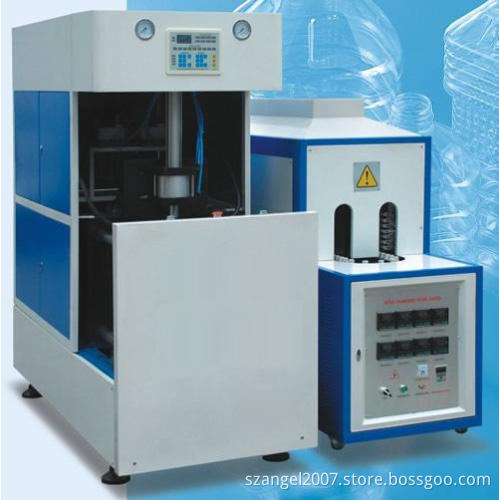

CM-9B semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.

* Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
* The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
* The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
* The machine can be operated in the step-by-step mode and the semi- auto mode.
* The machine is small with low investment, easy and safe to operate by one person.

For some example below:
Main parameter:
Model CM-9B
Container Product material PET
Volume L 5-10
Theoretical output PCS/h 300-500
Preform length Mm 15-460
Preform inner diameter Mm φ 15-200
Mould Max. Mould plate Diameter(L x W) Mm 470*500
Max. Mould thickness Mm 370
Clamping force KN 100
Mould opening stroke Mm 350
Machine size and weight Main machine (L x W x H) Cm 193*72*183
Main machine weight Kg 800
Heater (L x W x H) Cm 187*63*145
Heater weight Kg 250
Power KW 17.5

CM-A4 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

* Reasonable design, full automatic control, save power and labor. Adopt high quality
Components.
* Feeding system carries the performs by robot automatically.
* Infrared oven heater adopts the quartz lamp to heat the PET tube.
* Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble -shooting, maintenance and other benefits.
* We have perfect service after sales.

Main part:
Pneumatic part Valve FESTO/SMC
Cylinder
Electric part PLC LG
Operating system LG
Relay OMRON
Infrared thermometer America Raytek
Note All of the electrical components adopts CE / UL / CCC approved international advanced high-tech product.
Main parameter:
Model CM-A4
Productivity Depend on bottle design 3200-4000 PCS/h
Product type Body diameter ≤ 100mm
Height ≤ 310mm
Neck diameter 18-38mm
Mold Cavity 4 cavity
Mold thick 240mm
Mold 260*240*370mm
Main machine power Electrical source power 380V/220V 50/60Hz
Rated Power 49KW
Really use power 10-15KW
Air source LP air compressor 1.6 m3 /min 10kg
HP air compressor 2.0 m3 /min 30kg
Air dryer 2.0 m3 /min 30kg
Cooling water Cooling water 15L /min
Size L*W*H 1910*1858*1935mm
Weight 3600Kg
Auxiliary equipment( pre-form unscrambler) L*W*H 2000*950*2480mm
Weight 250Kg
Resin available PET
