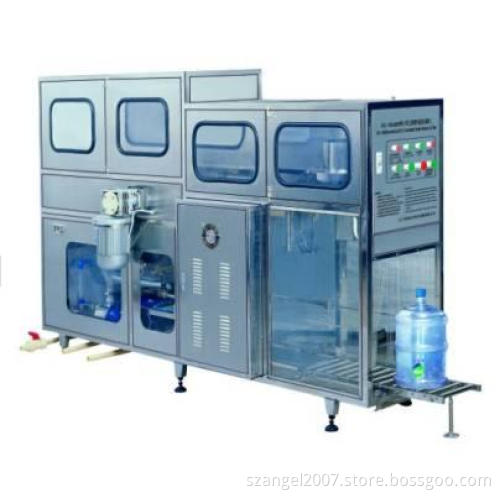

5gallon Bottle Filling Machine 60b/H (XG-100/J(60BPH))

Product Description
Product name: Automatic Water Bottling Machine
Model No.: XG-100 (60Bottles/Hour)
Process: Washing + Filling + Capping
Power: AC 380V 50Hz
Input power (KW): 1.5 KW
Bottle's spec. (mm): 5Gallon: 270x490xΦ 56 (Diameter)
Bottle's volume: 5 gallons
Capsule's spec. (mm): Φ 58x40
Pressure of compress air: P≥ 0.6MPa
Bottle Washing capacity: 60Bottles/Hour
Bottle filling capacity: 60Bottles/Hour
Description This machine is divided into four parts as below:
1. WASHING (Washing inside)This part consist of carrying bottle, bottle holder, photo eye sensor, pushing bottle and washing pump
2. FILLINGThis part consists of pushing bottle air ram, rotating bottle air ram, filling tap, capping, and pure water pump.
3. ELECTRICITY CONTROLLINGThis part consists of PLC. (Imported from LG of Korea)
4. AIR CONTROLLINGThis part consists of air ram, air solenoid valve. Etc
Dimension (mm)(LxWxH): 2360x730x1550
Packing size (mm)(In wooden case): 2600x950x1800
20FTFCL(PC): 6
G. W(kg): 250
N. W(Kg): 200
The direction of bottle output: Beeline direction output bottle
