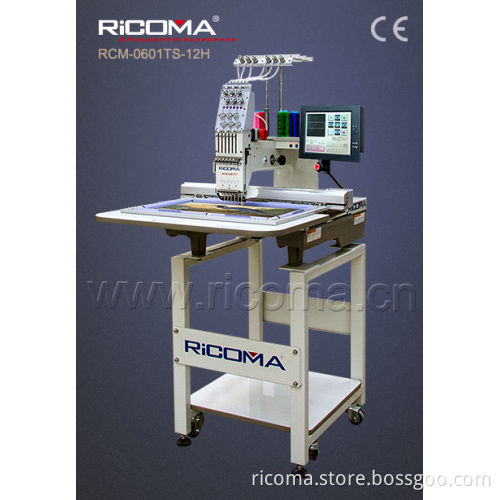

Single Head Embroidery Machine (RCM-0601TS-12H-EW4814)

Main Features:

6 needles, one head, suitable for flat bed embroidery,
Cap/hat embroidery, finished garments embroidery and more
Perfect for home and commercial embroidery
Maximum embroidery area: 1200 X 350 mm, or 48" X 14"
Automatic thread trimmer
Maximum speed 1200 SPM
270° Wide angle cap system
Built-in computer control system with 10" touch screen
USB input or direct transmission from PC via serial port or wireless
Networkable and Wi-Fi capable
Auto color change
Thread break detection
Pre-sew design trace capable
Automatic memory retention
Memory size: 1, 000, 000 stitches and 99 designs
Servo motor 150W ¬ Lowest power consumption in the industry
Built-in universal power supply, 110V/60Hz and 220V/50Hz self adaptable worldwide
DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration.
Net weight: 90 kilograms or 200 lbs. It can be easily moved around
Heavy duty steel stand with wheels to ensure both stability and mobility
On-board lettering
Environment friendly packaging
Optional laser trace device available
Emergency stop

Advanced Functions

Touch Screen - 10.4" (264mm), with no complicated menus.
Memory - The built-in computer has an 8 GB hard drive, which allows users to store unlimited designs and unlimited stitches.
Design auto centering after loading to avoid hitting frame.
One step tracing makes it easier and more efficient for any users.
Abundant parameters settings like machine parameter, embroider parameter, frame size parameter, network setup, function test, task manager, screen calibration, event log etc.
Multiple backgrounds make it more personalized
Auto offset supports appliqué Embroidery. You just insert F in color change sequence. Frame will auto move out to allow you to put applique. Then press Start to continue embroidery work.
System will alarm if design is bigger than frame. Then select a bigger frame.
Designs will be remembered when machine is turned off.
Select the right frame so designs may be viewed inside the frame area.
Move embroidery position with slow and fast speed control.
Optional special frames available to fulfill more embroidery requests.
Rewind or forward through stitches. Go back/forward 1, 20, 50, or 100 stitches, or float.
Information display on the control panel.
Color change system is more user-friendly. The color of thread on the thread stand can be the same as shown in the system.
Clear rescale, rotation, mirror and zoom function makes operation easy for any users.
Connect via Ethernet or load design from USB flash drive.
Monogramming software may be integrated with this system.
Viewer online support service to allow users to get support in a fast and easy way.
Digitizing, lettering and editing software is integrated into system. More efficient, less time-consuming.

Frames / Hoops Included

2 X Round Hoop 9 cm (3.5")
2 X Round Hoop 12 cm (4.7")
2 X Round Hoop 15 cm (5.9")
2 X Round Hoop 20 cm (9")

2 X Square Hoop 29 X 29 cm (12" X 12")
1 X Oval hoop 54 X 36 cm (21" X 14")

Cap Attachment Included

Accessories Included

Table and stand with wheels for easy moving around, 70 X 70 X 78 cm or 27.50" X 27.50" X 30.50" with the net weight of 38 kilograms Operation Manual Tool Kit
Optional Device
Sequin device Cording device Robot Frame
8 in 1 devicebr Belt hoop Boring device Laser positioning device
