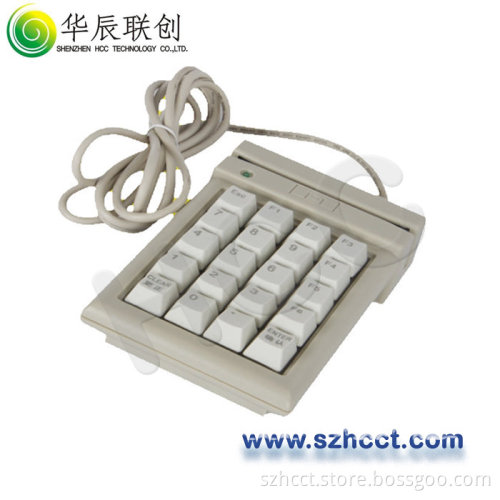

Keypad with Slot Reader for Magnetic Stripe & Barcode

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

HCC 810 series keypad combine PIN input, magnetic stripe and barcode reading function together, provide convenient/flexible application for banks, POS and retail systems.

Features
Optional slot reader for barcode or magnetic stripe
PS/2 or RS-232 communication interface, USB at optional
LED and audio beep indicators
Single or dual-track configuration
Bi-directional swipe
ISO 7810/7811/7812/7813 compliant
Recognize many kinds of barcode, such as EAN/JAN-8/13 Code 39/128 Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5 etc.
Easy configuration through barcode menu

Specifications
Keypad 18 or 20 keys, DES or Triple DES encryption at optional
Communication interface RS232, standard keyboard, PS/2 or USB at optional
Power supply DC+5V, 40 to 80mA
Manual swiping speed 20-100mm/sec
Reliability > 500, 000 times pass
Working temperature 5-45
Humidity 10%-90% RH non-condensing
Dimensions (LxWxH)180mmx113mmx40mm
Housing Plastic PC, Ivory color

Model Description
810x1-x2x3x4
Type X1 Interface X2X3 Tracks X4
Encryption
810 R RS232 Series port 04 1/2 tracks
0 No
U USB port 05 2/3 tracks 1Yes
K Keyboard compatible 06 1/2/3 tracks
