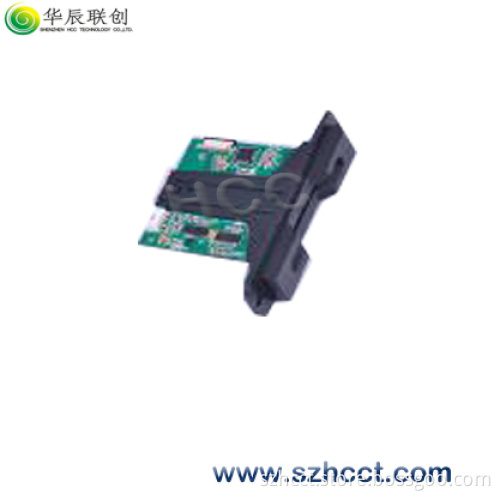

Hct-100 Insert Smart Card Reader

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

General
HCT-100 is a half-insertion manual IC card reader-writer which conforms to the ISO7816 standard. It is mostly used in the industries such as financing, electric power, medicine and lottery.

Feature

ELECTRICAL Power Supply DC5 V± 5%, <200mA
Quiescent Current 50mA
Communication Method USB(PC/SC protocol) /RS23 (optional)
STRUCTURE Service Life of Card Socket ≥ 100, 000 passes
Net Weight Approx. 38g (excluding accessories and package)
C/R Dimension 101L x 65.3W x 25.2H mm
ENVIRONMENTAL Operation Temperature/ Humidity 0° C to 50° C, 0 to 90% RH without condensation
Storage Temperature/ Humidity -20° C to 70° C, 0 to 90% RH without condensation
PERFORMANCE Cards Supported 86L x 55W mm (0.76mm standard card)
Card Types Supported ISO7816 Classes A/B/C (5V, 3V)
Operating System Win 2000, Win XP, Win Vista, Win 7
