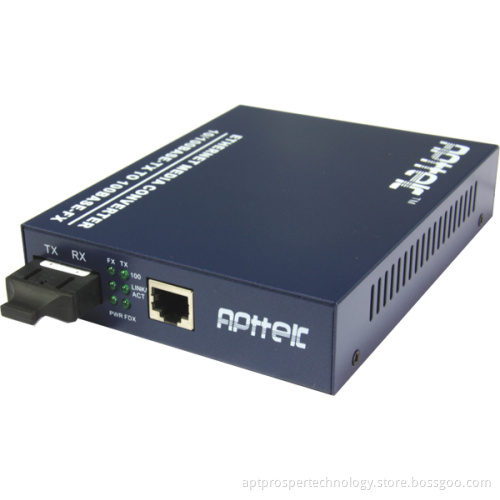

Media Converter (APT-103S36IC)

APT-103S36IC are 10/100M singlemode dual fiber, Built-in power supply Media Converters with transmittal distance 60KM. With a feature of media converters is that it's a internal power supply.

This fast Ethernet media converters with internal power supply and SC connector is 10/100M auto-adaptation Ethernet fiber optic media converter, . It expands the network transmitting range limit from the copper wire 100 meters to 120 kilometers (single model optical fiber), and can easily realize the link between HUB, SWITCH, the server, the terminal and long-distance terminal.

Specification
Connector Type: SC
Typical Distance: 60Km
Fiber Type: Singlemode
Wavelength: 1510nm
Min TX PWR: -15.0dBm
Max TX PWR: -7.0dBm
Sensitivity: -32.0dBm
Link Budget: 17.0dBm

Technical parameter
1. Standards: IEEE802.3u Fast Ethernet 10/100Base-TX and 100Base-FX
2. Connectors: (RJ45-UTP and Fiber SC)
3. LED: Power. FDX/Col, FX-Link/Act, TXLink/Act, FX100, TX100
4. Data Tranfer Mode: 10/100Mbps
5. Duplex Mode: Full or Half Duplex Mode
6. Power requirement: AC 100-260V DC1A@+5V
7. Ambient temperature: 0~70degree
8. Humidity: 5% - 90%(noncondensing)
9. Cable: Cat. 5 UTP cable
10. Fiber: Singlemode
11. Size: 140mm*110mm*30mm (L*W*H)
