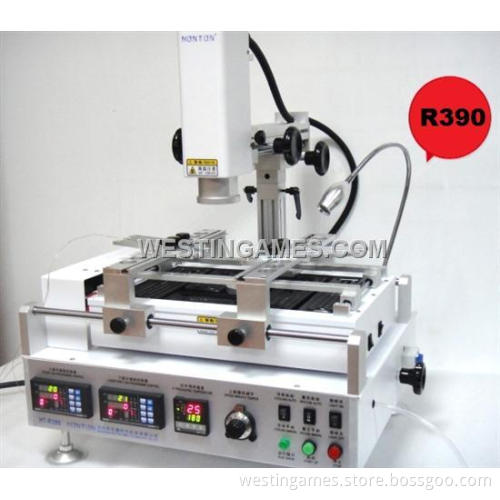

BGA Rework Station Ht-R390, Ht R390 for SMD Hot Air Rework 220V

Description:
HT-R390 Hot Air BGA Rework Station can be connected with computer for to watch external temperature in the computer.
It uses 3 temperature area independent control, temperature control more accurate. For big heat capacity PCB and other high requirements, lead-free solder can easily handle, max up to 320x375mm, v-shaped fissure card slot PCB positioning. HT-R390 BGA rework station is suitable for laptop computer motherboard, desktop computer motherboard, etc. Large circuit board maintenance, and mobile phone motherboard such small small-sized chip maintenance.

HT-R390 Hot Air BGA Rework Station advantage:
HT-R390 is 3 temperature area products.
HT-R390 fluctuation sirocco all USES high-grade temperature control meter.
HT-R390 fluctuation hot air heating, infrared preheating.

HT-R390 Hot Air BGA Rework Station Features:
With high precision temperature control instrument imported raw materials (PLC). J heater precise control of BGA desoldering process.
The machine uses 3 temperature area independent control, temperature control more accurate.
The first temperature area. The second temperature area all can set 8 paragraph litre (drop) temperature + 8 section temperature control, can also store 10 team temperature curve.
The third temperature area USES far infrared heating board preheat, independent temperature control, ensure the welding process of PCB can comprehensively preheating,
The machine has the computer communication function, the built-in PC serial port, external temperature measuring interface, equipped with software, computer control can be realized.
Imported high-precision thermocouples, realize the temperature of precision detection.
Using upper heating and bottom heating temperature curve way walk alone, cross-flow rapid cooling fan, guarantee the principle in PCB welding process, won't be out of shape.
Desoldering and welding finished with alarm functions, equipped with vacuum pen, convenient desoldering suction trip after BGA.
PCB positioning of the card slot, v-shaped fissure of flexible and convenient portable universal fixtures, to protect PCB.
For big heat capacity PCB and other high requirements, lead-free solder can easily handle.
Sirocco can rotate 360 degrees arbitrary time-and-labor-saving, easily replaced. Equipped with a variety of sizes sirocco can be customized tip special requirements.
Suitable for laptop computer motherboard, desktop computer motherboard, etc. Large circuit board maintenance, and mobile phone motherboard such small small-sized chip maintenance

Specifications:
Total Power: 3800w
Top heater: 800w
Bottom heater: 800w
Bottom Infrared heater: 2200w
Temperature control: High-precision K type thermocouples
PCB Board: Support max up to 320x375mm, v-shaped fissure card slot PCB positioning
Power: AC 50/60HZ 3KVA
Dimensions: 420x500x550 cm
Net weight: 28 kg

Package Contents:
1x HT-R390 Hot Air BGA Rework Station
5x Nozzles (25x25, 29x 29, 34x34, 40x40, 50x50)
1x Aluminium plate for BGA IC reballing
1x Data Cable
1x Manual
