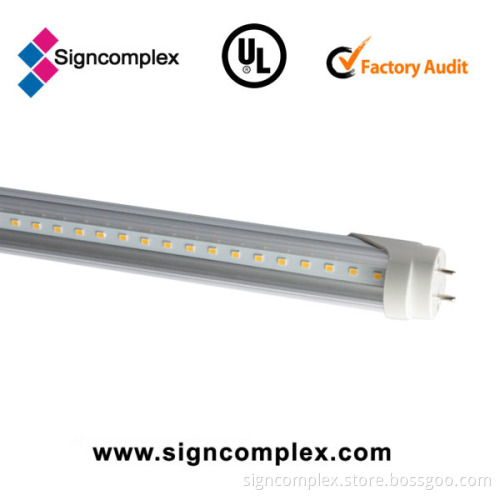

High Output LED T8 Tube (CT8-022-AW)
  • High Output LED T8 Tube (CT8-022-AW)
High Output LED T8 Tube (CT8-022-AW)

High Output LED T8 Tube (CT8-022-AW)

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: T/T
Product Description
Product Description

Product Description

Why our CT8?
-Much longer life than CFL tube: min. 10 years (at an average usage of 8 hours per day).
-70%~80% Energy-saving over Fluorescent tubes.
-Solid State, high shock/vibration resistance.
-Work without ballast, Instant soft-start.
-No RF interference, No flickering or buzzing.
-Quick and easy installation to minimize retrofit costs.
-Minimum maintenance costs, generates little Heat.
-No Mercury and other hazardous materials, fully RoHS-compliant.
-Continuous operation for white LEDs (10 years for other colors).
-Rated to operate from -4°F to 104°F [-20°C to 40°C], perfect for
  environments with extreme climates.
-Epistar+Intermatix LED packaging solution, non patent-infringing.
-Modern design.
-Highly cost-effective.
-Completely insulated electrical design for maximum safety.
Feature
- Cost-effective.
- Custom-designed built-in driver, with reliable performance and long lifespan.
- UL & TUV certified circuit design.
- No risk of electric shock during installation.
- Compatible with existing inductive ballast fixtures, reducing installation cost
  and maintaining the warranty of the whole fixture.
Technical Parameters
Standard length: 60cm, 120cm and 150cm.
Rated input voltage: 100-240V AC, 50/60Hz,maximal input voltage 277V AC.
PF (power factor): >0.90.
DC 12/24V available.
Applications
parking lot           residential         warehouse            signage
          office            railway station               bus

Type Model No. Color Length Power(W) PF CRI Light Output
Frosted CT8-009-AW-W-01F White 52 9W ≥0.9 ≥80 920
CT8-009-AW-NW-01F Natural White 52 9W ≥0.9 ≥80 880
CT8-009-AW-WW-01 F Warm White 52 9W ≥0.9 ≥80 830
CT8-018-AW-W-01 F White 110 18W ≥0.9 ≥80 1950
CT8-018-AW-NW-01 F Natural White 110 18W ≥0.9 ≥80 1850
CT8-018-AW-WW-01 F Warm White 110 18W ≥0.9 ≥80 1750
CT8-022-AW-W-01F White 130 22W ≥0.9 ≥80 2430
CT8-022-AW-NW-01F Natural White 130 22W ≥0.9 ≥80 2260
CT8-022-AW-WW-01F Warm White 130 22W ≥0.9 ≥80 2180
Clear CT8-009-AW-W-01C White 52 9W ≥0.9 ≥80 1060
CT8-009-AW-NW-01C Natural White 52 9W ≥0.9 ≥80 990
CT8-009-AW-WW-01C Warm White 52 9W ≥0.9 ≥80 940
CT8-018-AW-W-01C White 110 18W ≥0.9 ≥80 2170
CT8-018-AW-NW-01C Natural White 110 18W ≥0.9 ≥80 2090
CT8-018-AW-WW-01C Warm White 110 18W ≥0.9 ≥80 1960
CT8-022-AW-W-01C White 130 22W ≥0.9 ≥80 2910
CT8-022-AW-NW-01C Natural White 130 22W ≥0.9 ≥80 2680
CT8-022-AW-WW-01C Warm White 130 22W ≥0.9 ≥80 2910
