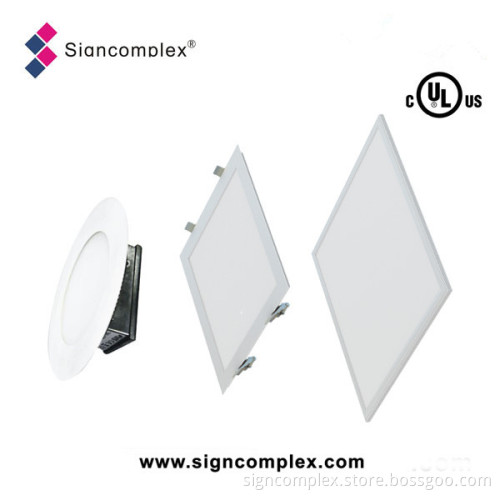

UL 10W 39W 66W LED Panel Light

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T

Product Description

UL 10W 39W 66W LED Panel Light
Features:
Color:cool white,warm white,other available.
Enclosure material:Die-casting
Power factor>0.95
Beam angle: 110 Degree
Saving energy:50%
Lifespan more than 36,000Hrs
Operating environment: dry location only
Gross weitht:720g
Input : AC 100-240V 50/60Hz 0.2A 10W
Output : DC 25-40V 0.32A
LED Source:3528 SMD LED
Type IC
Reflector:milk color PMMA
No UV,no IR
Standard warranty:3 years
Safety standard:SAA,RoHS,CE,UL

Applications:
Dimensions (Unit: mm/inch):
Installation Instructions:

Model No.

Color

LED Type

LED Qty

CCT(K)

Power Consumption(W)

CRI

Luminous Flux (lm)

Voltage
(V DC)

Beam Angel
(degrees)

Weight (kg)

DL-010-AW-01W	White	SMD 3528	108	5500-6500	10	80	620	100-240	110	20	0.72
DL-010-AW-01WW	Warm White		108	2700-3200	10	80	580	100-240	110	20	0.72
DL-010-AW-01NW	Nature White		108	3900-4500	10	80	620	100-240	110	20	0.72

Model No.	Color	LED Type	CCT	Power	CRI	Lumen	Voltage	Beam Angle	Weight
SC-PSCAWCE6012	Cool White	SMD 3528	5500-7000K	66W	80	5200	24V DC	110°	9.8kg
SC-PSCAWNE6012	Nature White		4000-4500K			5150	24V DC	110°
SC-PSCAWWE6012	Warm White		2700-3200K			4860	24V DC	110°

Model No.	Color	LED Type	CCT	Power	CRI	Lumen	Voltage	Beam Angle	Weight
SC-PSCAWCE6060	Cool White	SMD 3528	5500-7000K	66W	80	3140	24V DC	110°	6.1kg
SC-PSCAWNE6060	Nature White		4000-4500K			3100	24V DC	110°
SC-PSCAWWE6060	Warm White		2700-3200K			2890	24V DC	110°
