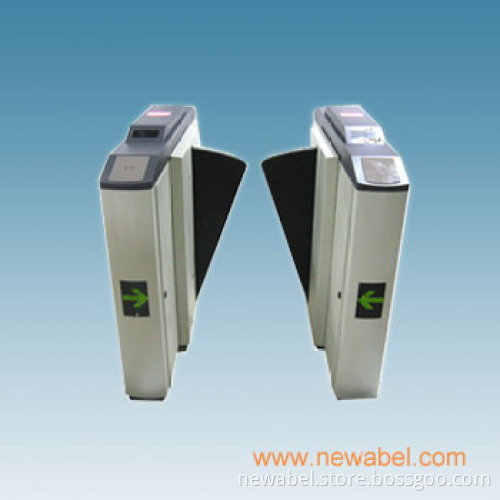

Barrier Gate-Fly Shape (CHD-NB1-1)

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Western Union

Product Description

Barrier Gate-Fly Shape
Parameter

Dimension: L1200mm*W320mm*H1040mm
Material: Spurt models + stainless steel cover
Cover thickness: 1.5mm
Configure: Single mechanical core box (suitable for single passage and multi-passage); Double mechanical core box (use for multi-passage)
Drive Modes: Photoelectricity induction, stepping motor drive
Measurement for failure: Power off/on reposition.

Swing gate is composed of mechanical core, stainless steel box, drive board and power supply.
Entry modes: 1. Free passage way; 2. Blocked; 3. PC control from remote distance 4. Control entry by authorizations
Power Supply: IN, AC220V; OUT, AC24V; DC12V
Operating Temperature: -30 - 60 Temperature: 5% - 90%
Drive board relay: AC250V / 7A
Noise index: ≤ 50dB
Passage Width: ≤ 600(mm)

Ticket-checking Speed: More than 50pieces / m
Electricity consumption (single): Static<20W; Dynamic <70W
N. W.: 100KGexclude control equipment.
