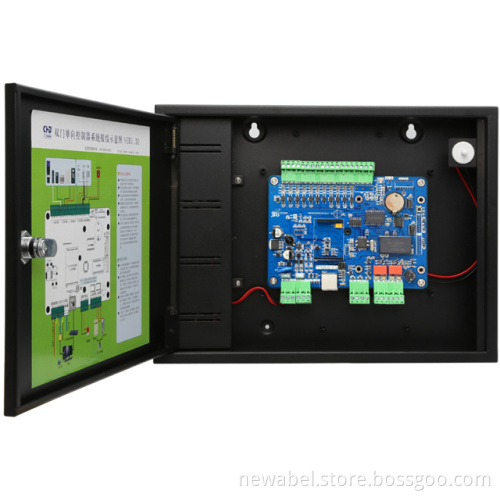

Chd805t2 Double Door One-Way Access Controller

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Western Union

Product Description

^{Performance Parameter

Dimension:356mm(L)×265mm(W)×62mmH)±5%
Net weight:2.8Kg±5%
Color: black
Rated operational voltage: AC220V 50HZ
Output voltage range: AC100-240V
Working current: the controller maximum working current less than 300mA
Minimum supply current: 2A/AC220V input
Authorization user:1700(The number can expand to 10576)
Event record:6144
Communication mode: standard RS485;YDB023-1996;(RS422 communication interface should be ordered in advance)
Communicate rate:9600BPS, no verify,1 start bit, 8 data bits, 1 stop bit
Card reader interface: 2 units wiegand input interface, can external connect 2 units wiegand card-readers.
Input interface:7 groups Optical coupling isolation input(exit buttonx2, door switchx2 ,infraredx2,emergency linkage)
Output interface: two unit door-open relay, one public OC alarm output relay, two doors each has one OC alarm output relay.
Drive capability:relay output MAX:DC12V/2A/25SEC 24V/25SEC AC75V/3A/25SEC
Working status: sound and light prompt. Power on indicator light, Ethernet communication indicator, read card open the door and other actions buzzer voice prompt.}
