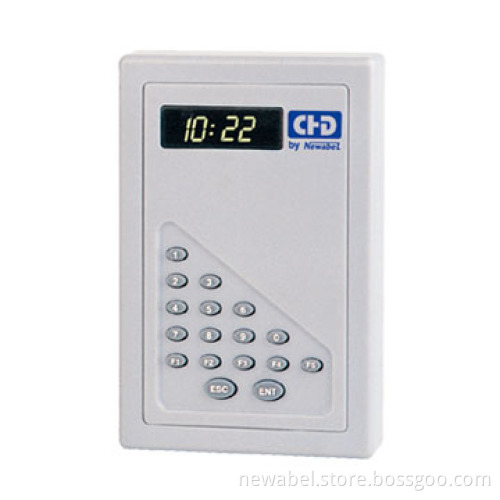

Ethernet Access Controller Single Door with Keypad

Ethernet access controller

Size: L150mm× W100mm× H28mm
Power: DC12V; Consumption≤ 1W
6 digit LED digital display with keyboard operation function (non-internet)

Registered user number can reach 1700 (the number can be expand)
Detailed record: The upper limit for newest record is 6144 (can be expand to above 20, 000)

Multi-environment monitoring, event-management, and alarm output
Support different ways of door-opening: Card, remote control, keypad ID and button

Support TCP/IP network, standard 10MB Ethernet
Without internal card reader, support connect with two Wiegand card reader
Monitor record for environment event: Door switch and infrared, etc

Functions:

Maximum 1700 card holders;
User non-contactless card number. (5 bits);
User ID(4 bits);
User valid period (2000/01/01-2099/12/31)
Userp password(4 bits);
User Classification(General User, VIP User);
User admittance time limition;

Support many kinds of opening door:
Reading card;
Card + User password (keyboard);
User ID (keyboard)+User Password(keyboard);
Remote control;
Manual opening-door button (Indoor, or discharging without standing up);

Support TCP/IP networking:

Time-interval control:
(1) On workday or holiday manage admittance time-interval
Workday: Able to setup 4 admittance time-interval tables for different users.
Each table has 4 different admittance time-intervals.
Rest day, Holiday:
Rest day in week: Setup to be none or any day or any two days;
Nation legel holiday: May setup 40 groups(days): Xx month xx day;
E. G.: 1st, Jan, 1st, May, 25st, Dec, etc.
Be able to set a holiday admittance time-interval table which has 4 admittance time-intervals.
(2) By week (Monday to Sunday) manage admittance time-interval
May set 16 admittance time-interval tables each of which has 6 admittance time-intervals corresponding to different users
(3) Protection-set time-interval: NC door, NO door, in-brea detection, door S. W monitoring, two-times password confirmation

Keyboard operation (use in non-networking):
System controls to set parameters and check clock;
Add users;
Delete users;
Turn on infrared monitoring;
Input user ID and password to open door;

Environment monitoring, events management:
Status monitor of door switch(install door S. W);
Monitoring inducer such as IR/ID (infrared) monitoring or connect fog inducer;
Reading card "validity/invalidity"record
Internal parameters of the Access controller are modified
Information of authorized users is modified
Provide function combination of"linked" action operation
Support many kinds of electromagnetic lock:
NO lock;
NC lock
Impulse lock
Driving time of unlocking relay: 0.1s-25s
Delay of waiting opinging door: 2s-25s
Delay of infrared warning confimtion; 2s-25s

Ddetailed record:
All events will be recorded in realtime, Maximum 6144 latest storage records
(1) Record of opening door
Record of reading card to open door;
Record of opening door by user ID + password;
Record of open door to discharge by manual opening door button;
Record of open door;
(2) Monitoring record
Record of parameters of controller being modified
Start-up record of open and closing by infrared monitor
Authorized user don't enter after reading card or don't close door after entry in time
Invalidly reading card (unauthorized card attempt to be read to enter);
Invalid authority (expired user or unauthorized admittance time-interval) attempt to enter
(3) Warning record
Infrared inducer warning(illegal in-break)
Door opened unnormally(illegal in-break)

Warnning Output:
CHD805AE-E provide OC door warning output; Allow to set OC door output status when warning.

6-bit LED digital display:
Real time display
Keyboare operation prompt;
Reading card prompt;
Warning code prompt;
