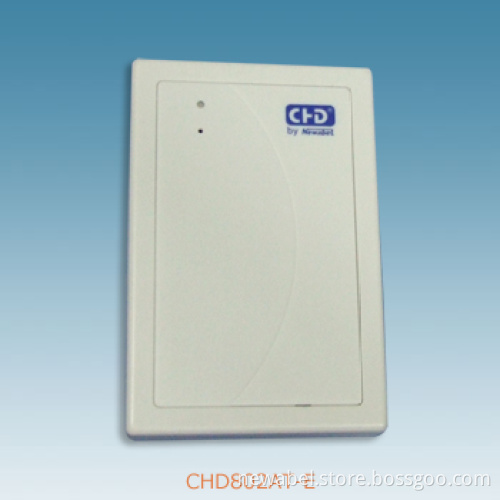

Ethernet Access Control System (CHD802AT-E)

Parameter

* Size: L150mm× W100mm× H28mm
* Power: DC12V, Consumption≤ 1W
* User capacity: 455
* Support multi-mode of door-open: Card only, remote control, exit button;

*Communication: TCP/IP, standard 10MB Ethernet;
* Environment monitoring record: Door switch, and infrared, etc
* Support different electromagnetic locks: Magnetic lock, electric bolt, pulse lock, etc
* Transaction capacity: 6144 (can be expanded to above 20, 000)
* Connectable to Wiegand reader, with anti-jamming protection for both input and output interface

* Oiled treatment of the surface: Mold-proof and anti-dampness
* Working temperature: -10° C-55° C; Working humidity: <98%
* Without keyboard setting function or LED display
