2.0MP Web IP Camera with 80-100m Wireless Range (MVT-W223W)

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Western Union

Product Description

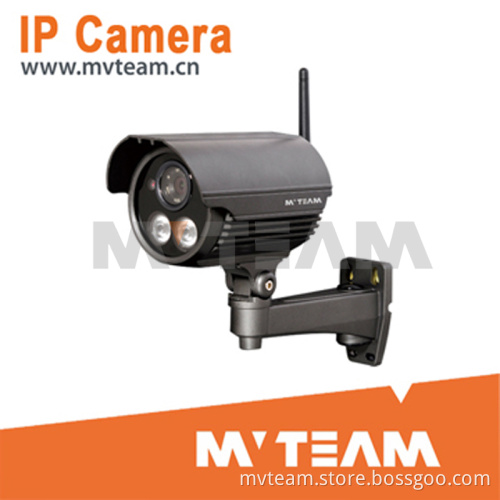

2.0MP Web IP Camera With 80-100m Wireless Range(MVT-W223W)

Feature:
1-2mp Mega Pixel Fixed Lens
2-IP66 Rated waterproof
3- With WIFI
4- Support 32G SD card
5- 2PCS IR array LED
6- 50m IR distance

Specification:
1-H. 264 Main Profile @level 3
2-1/3" CMOS Sensor Progressive Scan
3-4/6 mm Megapixel Lens
4-Waterproof IP Infrared Camera, Day/Night, 50m IR Range Outdoor use
5-50m IR Range Outdoor use
6-Build in WiFi Module 802.11b/g/n 80-100m wireless range
7-SD Card slot, 802.3af POE optional

Real Picture:

MVT-W223W IP camera Remote view interface by different ways:
1) View by WAN IP address

2) View by free CMS software

MVTEAM IP camera come with below free accessories:
mounting bracket
power adapter
ethernet cable
CD(user manual and softwares to remote view)

Model		MVT-W223W
Hardware
Sensor		1/3" Progressive Scan CMOS OV10633
Effective Pixels		1280(H)×720(V)
Min.Illumination		3650mv/lux-sec
Day/Night		Auto,dual IR-Cut filter
IR LED		2pcs Array IR Led 42mil, 40m IR Range (131 feet)
Max S/N Ratio		39dB
Electronic Shutter		Rolling Shutter
Interfaces
Optical lens	Interface	CS mount (Interchangeable Lens)
	Lens	Fixed Iris, Manual Focus
	Focal Length	Fixed Focol f6 mm / F1.4(4/8 mm for optional)
	H View Angle	50.0°
Audio Talkback		1 channel power MIC input, External access, AV interface
Audio Output		1 channel power speaker output, AV interface
Storage Interface		Micro SD (TF) Card supports video storage and image snapping;
		SD2.0 standard,maximum storage 32G
Network Interface		10/100M BASE-TX,RJ-45 connector
RS485		Default as RS485 port for PTZ, 1ch Alarm input or 1ch alarm output optional
Audio video encoding
Video Compression		H.264 Main Profile; MJPEG/JPEG Baseline
Resolution	Main Stream	HD 720P (280*720) 1-25fps
	Sub Stream	CIF(352288)/QVGA(320240)/QCIF(176*144) 1-30fps
Video Bitrate		32Kbps~4Mbps,Supports CBR/VBR
Title OSD		Supports channel name, date, and video stream information overlay;
		OSD location is adjustable
Privacy Mask		4 configurable regions
Image Orientation		image flip and mirror
Auto Image Control Functions		Auto Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)
		Auto Black Level Calibration (ABLC)
Image Controls		Color saturation, hue, gamma, sharpness (edge enhancement), lens
		correction, defective pixel canceling, and noise canceling
Audio Compression		G.711
Two Way Audio		Support
Data transmission and storage
Data storage		Video and Image
Recording		Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output		FTP,E-mail, Explorer, Software
Network protocol		TCP/IP\UDP\RTP\RTSP\RTCP\HTTP\DNS\DDNS\DHCP\NTP\SMTP\UPNP
Wireless protocols(-W)		802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2("-WiFi" model supports)
ONVIF protocols		Support 1.02 version
Remote View	PC	IE 6.0 or later, max 10 users
	Mobile Phone	iPhone, Android, Blackberry Mobile
General Parameters
Environmental Casing		Waterproof (IP66 Rated), Outdoor Use
Installation		Brackets Included, Wall Mount
Operating Temperature		-20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V
Operating Humidity		0% -85% RH
Power		DC12V 2.0A
POE		No
Power Consumption		9W(MAX)
Dimension		250 mm (L) * 100 mm (W) * 250 mm (H) (9.84" x 3.94" x 9.84" )
Weight		1 KG (2.2 lb )
Package Dimension		328 mm (L) * 150 mm (W) * 148 mm (H)
Package Weight		1.62 KG (3.57 lb)
Approvals		CE FCC RoHS
