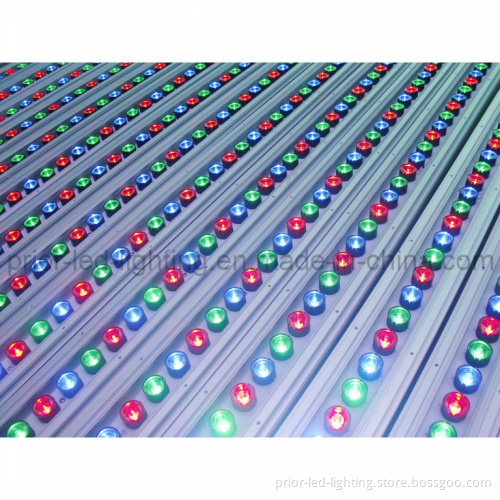

RGB LED Wall Washers Production

Application:
Stage lighting, Disco hall, Large literature performance, Gymnasium lighting, Temporary stage performance, City lighting system, TV station, Conference center, professional showplace, Topic park, Bar lighting and so on.

DMX512 wireless receiver / transmitter LED wall washer is to transmit standard DMX512 protocol data by wireless way, which solve lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It gets rid of connecting cable limited completely And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.
This product adopt global opening 2.4G ISM frequency section without permission limited high effective GFSK modulate, communication design is 126 channels jumping frenquecy, high anti-jamming ability.

Product DMX Feature:
1. Product model: 2.4G DMX512 wireless receiver/transmitter
2.126 channels jumping frequency self-moving, self-moving to option non-interfere frequency section, ensuring communication is reliable.
3. Communication distance: 400M(visible distance)
4. Working frequency: 2.4G ISM, 126 channels
5. Max transmitting power rate: 20dBm
Receive sensitive: -94dBm
6. Light board white or black optional.

LCD Setting:
DRIVER DISPLAY MENU
Adr = DMX 512 ADDRESS (1-512)
A-1 = Colors Fading
A-2= Colors Jumping
A-r = Static RED
A-G = Static GREEN
A-b = Satic BLUE
A-S = Colors Flashing
A-D = Whole Brightness DIMMER LEVEL

OVERVIEW

Dimension:
Cauction:
3 year warranty, repairment, free replacement except damaged artificially
The manufacturer willn't offer free service in warranty period if any repaired or uncapped had happened
It's better to return to manufacturer if repairment is must, Don't do any repairment unless qualified electrician.
The working condition should be under temperature -20° C~+45° C, 10%~90%RH, no congelation, so as to ensure it's lifetime.
It cann't be covered by any superstratum, it should be swept periodly to prevent dust.
