RGB DMX LED Wall Washer

Wall washer, led wall washer, led wall light, led light

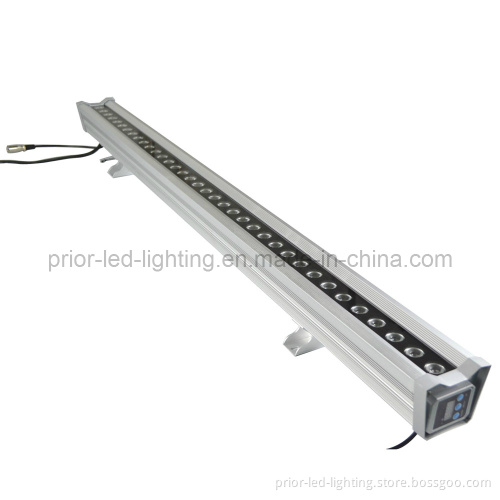

DMX512 Series Single Row LED Wall Washer

(RGB) DMX Channels:
5CH(R G B S D)
1 Red
2 Green
3 Blue
4 Strobe
5 Dimmer

SPECIFICATIONS
Power supply: 100-240VAC 50/60Hz
Power consumption: (lw LED)15X1w, 18X1w, 24X1w, 30X1w, 36X1w optional
(RGB3in1)15X3w, 18X3w, 24X3w, 30X3w, 36X3w optional
LED:
15PCS(5R 5G 5B)/ 15PCSX3W RGB3IN1
18PCS(6R 6G 6B)/ 18PCSX3W RGB3IN1
30PCS(10R 10G 10B)/30PCSX3W RGB3IN1
36PCS(12R 12G 12B)/36PCSX3W RGB3IN1

Dimension & Box Size
15X1W L497*W85.5*H160MM(Single) 540*340*340mm(4PCS)
18X1W L620*W85.5*H160MM(Single) 670*340*340mm(4PCS)
24X1W L778*W85.5*H160MM(Single) 830*340*340mm(4PCS)
36X1W L1150XW85.5XH111.2MM(Single) 1200X340X340mm(4PCS)

LCD Setting:
DRIVER DISPLAY MENU
Adr = DMX 512 ADDRESS (1-512)
A-1 = Colors Fading
A-2= Colors Jumping
A-r = Static RED
A-G = Static GREEN
A-b = Satic BLUE
A-S = Colors Flashing
A-D = Whole Brightness DIMMER LEVEL

DMX Addressing:
Each device occupies different channels in different modes. To ensure that the control signals are properly directed to each device, the projector requires adressing. This is to be done for every single device by changing the LCD setting from below info. The starting address is defined as the first channel from which the device will respond to the controller. If you set, for example, the address to channel 4, the device will use the channels from CH 4. Please make sure that you don't have any overlapping channels in order to control each device correctly and independently from any other fixture on the DMX data link. If two, three or more devicees are addressed the same, they will work the same.

FQA:
A. How to make the master / slaver change colors together?
E. G RGB LED wall washer lamps 20PCS,
1. Set 19PCS lamps DMX address "ADR" one by one as "slaver", keep only one lamp at fixed modes as "master".
2. Connect 20PCS lamps each other via DMX connectors.
Then when the one master changes fixed modes, the other ones will change colors sychronically.
B. How to make each group lights who connect to a computer changes different modes in a building?
E. G RGB LED wall washers lamps 50PCS in 5 groups.
1. Use 5PCS WiFi DMX controlers in different DMX address, group No. 1 set 001, group No. 2 set 004,
Group No. 3 set 007, group No. 4 set 010, group No. 5 set 013. Each WiFi controler controls 10PCS wall washers. Make sure group No. 1 WiFi controler DMX input connect to USB box DMX output, the USB input connect to computer.
2. Program channel 1-3 for group No. 1 lights on software webpage, just push up channel 1 key for dimming up red, then group 1 all wall washers will light red color. Push channel 5 key for dimming up green, then group 2 all wall washers will light green color. The same way, to set the other 3groups in other 3 different colors. Then the user only needs to operate all groups of lights in a computer in a room easily.
C. How to dim single color?
There are A-R, A-G, A-B built-in single color programs fixed in controler. When you want to adjust red brightness, press MENU find A-R, press again you will see 3digitals, up for increasing, down for dereasing.
D. What is sound-activated function?
A-S mode achieved that LED RGB colors dance automatically along with sound.
E. One WiFi DMX controler can control how many RGB lights change colors individually?
Mostly, each WiFi DMX512 controler can control 170PCS different DMX address RGB lights.
F. Lights quantity is more than 170PCS, how to do?
Use another WiFi DMX512 controler connect to previous controler, it will continue to control another 170PCS.
